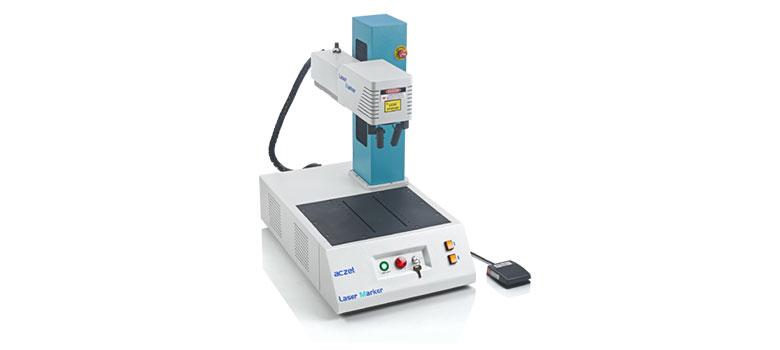

IncProfessional Fiber Laser Marking Machine

The Opened Designed for easy access to the working area and movement of marking object . Sturdy and rugged designed for M. S. Structure and year of operation. Auto head adjustment for positioning sample . Standard joystick for easy operation

Zig

The Open LASER Marker is also equipped with optional rotary axis device which facilitates LASER Markings on curved surfaces such as the inner or the outer face of cylindrical or curved objects.

Operational Accessories

Rotary

The "Open" LASER Marker is able to meet the highest standards of quality set by the most renowned Industries. It is perfect for engraving all types of precious and semi-precious metals, steel, titanium and many other materials, metallic and some non- metallic items.

Eye Protector

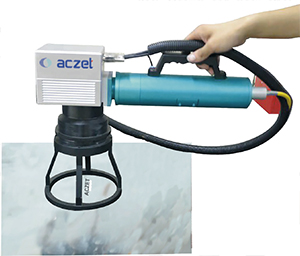

Optional Hand-held

Ytterbium Fiber Marking Product codes, production information, batch/lot information, QR Code, Company Logo, etc with Aczet Laser Marking.

Laser Marking Advantages over traditional methods

High-precision marking at constant quality.
Durable marking.
High marking speed.
Permanency.
Anti-counterfeiting.
Low operation cost.

Reliable industrial design for large parts/equipment marking applications; providing mobility and handheld positioning of the laser marking on bigger components.

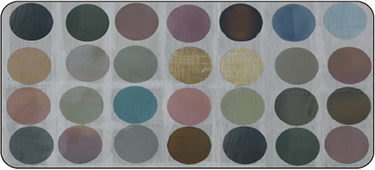

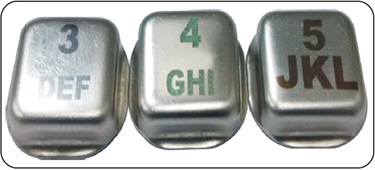

Optional Colour Laser Marking

Applications / Industries
Cooker Safety Valve	Automobile Components	Bearings	Sensors
Metal Plates	Plastic Components - PBT	Gas Fittings	Polymers Pipes
0.7 MM Small Marking	Datamatrix Marking On Polypropylene

Technical Specification

Model	CFM - F Series
LASER SOURCE	Ytterbium Pulsed Fiber Laser
LASER POWER	10W / 20W
WAVELENGTH	1064 nm
BEAM QUALITY M2	M² <1.6
PULSE REPETITION RATE	20 Hz - 100KHz
MARKING AREA (MM)	70 x 70 / 100 x 100 (Optional)
MARKING SPEED	< 15000 mm/sec
LASER FREQUENCY	20 - 100 kHz
COOLING SYSTEM	Air Cooling
MINIMUM WIDTH	0.03 mm
MINIMUM CHARACTER	0.3 mm
REPEATABILITY	0.003 mm
POWER CONSUMPTION	500W / 800W
POWER SUPPLY	220 V AC
DIMENSION (LXWXH)	600 mm x 460 mm x 530 mm
NET WEIGHT (APPROX)	45 Kgs

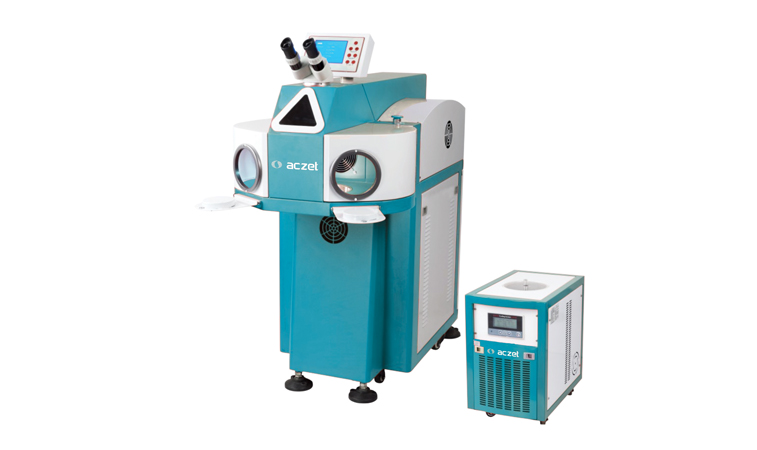

Laser Spot Welding Machine

CML-W 150

Applications / Industries

Technology

The Principal of Laser welding machine for Industrial is thermal conduction, namely, the laser radiates the surface of the part, and the heat on the surface expands ins ide through heat conduction. By controlling parameters such as laser pulse width, energy, peak value and repeating frequency, the sample will melt, and thus forming specific molten pools. Due to its unique benefit, the product has been successfully applied to precious metals Industrial processing, and welding of small-sized parts and porosity filling.

Design

Personalized design for hassle free operat ion in compl iance wi th ergonomics principles.

Dependibility

Sturdy Frame Structure For lowest vibration makes it, ideal for factory use & trouble free operation.

Display

New Touch Screen display for easy operation.

Ease

Upto 10 memories cells for storing working parameters permanently. Big Inside chamber for easy movement of big samples.

Advantages

Fast, efficient, deep, quality welding.
Welding points are free from pollution.
Saves time & energy.

Application for Jewellery Industry

Joining of different metals.
Repairing of Precious Items with temperature sensitive area close to Diamonds & Gems stones.
Assembling of Industrial parts.
Holes and porosity filling.
Antique repairing.
Titanium spectacle frames repairing.
Possible weld metals : silver, yellow and white gold, PT, Titanium.

Model	CML - W150
LASER WAVELENGTH	1064nm
MAXIMUM AVERAGE POWER	150W
MAX PULSE ENERGY	100J
DEPTH	0.1 - 3.3 mm
PULSE WIDTH	0.3 - 20ms
FREQUENCY	0.5 - 20Hz
SPOT SIZE	0.2 - 2 mm
POWER CONSUMPTION	4kw
POWER	220V +0% / 50Hz / 30A
INSTALLATION SPACE	Installation Location : 1 square meters
ENVIRONMENT	Clean, Dust free, ideal with Air Condition
TEMPERATURE	13ºC to 22ºC
NET WEIGHT	1050 mm x 1230 mm x 570 mm

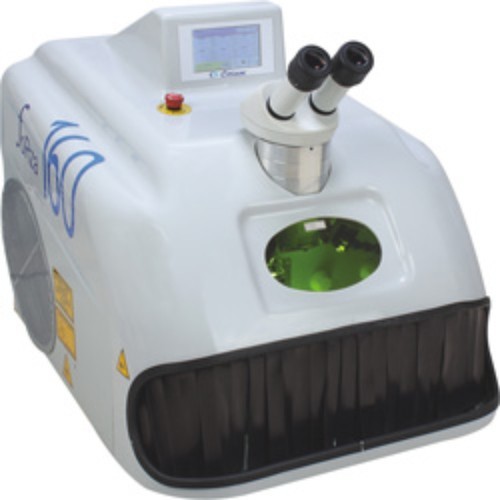

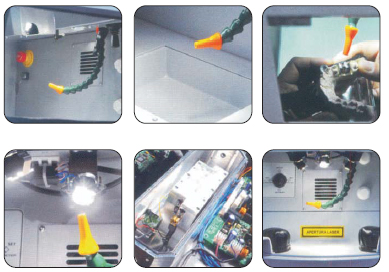

IncDesktop Laser Spot Welding Machine

FoRza Series

Technology

The new digital microprocessor incorporated in the FoRza works 100 times faster than traditional systems. and is able to measure the high energy precisely, analysing it and sampling it every 100 micro seconds.

This makes welder FoRza a powerful machine while at the same time constant and very precise in the repetition of the shots.

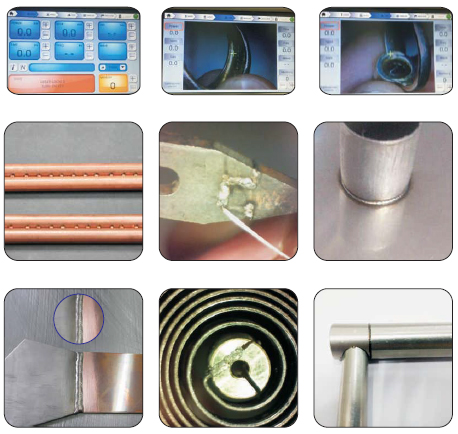

LASER APPLICATION

Easily weld precious metals and other, including platinum, titanium, silver and palladium.
Repairs molding without removing the stones.
Welds the elements using weld materials, and leaves them clear, sharp and without the need to clean again.
Repairs casting defects such as porosity or breakages. by simply welding those areas with solder wire.
Suitable for high-productive cycles

Real time and automatic regulations of the power supply.
Double light LCD Touch Screen Shutter.
Automatic control of the laser lamp, with consequent automatic adjustment of the energy.
Integrated webcam
Better cooling chamber & Efficient air cooling system.
6 preset pulse shaping programs
Argon Gas nozzle directly on the welding point
Air nozzle for cooling pieces in the working chamber
Extractable drawer for the chamber cleaning
Low noise and low maintenance 100memories parameters
Frontal and big doors
Optional on board LIVE Video Camera

Model	FoRza-100	FoRza-160
Maximum Laser Power	100J @ 20mS	160J @ 15mS
Peak Pulse-Power	5 KW	8 KW
Avg. Pulse-Power	65 W	85 W
Frequency of Repetition	0.5 to 30Hz
Spot Size	0.2 to 2.0 mm
Microscope	10 x 45 binoculars by leica
Program	6, preset
Program Memory	cells 99
Weight (Approx)	40 kg
Dimension (W x D x H)	750 mm x 540 mm x 530mm

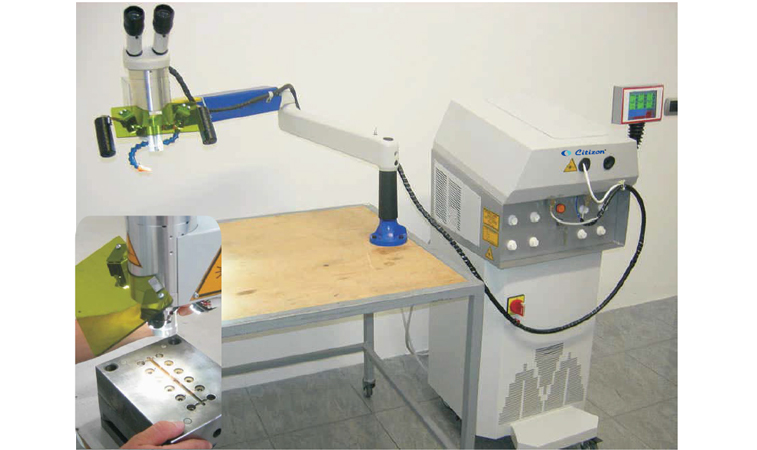

IncLaser Spot Welding Machine

FoRza Series

From the need to repair worn molds directly in his workshop in quickly and economically, brings our company to design a simple and very powerful that can also work on large molds (1000x100mm).

The optical fiber in fact carries the laser light from the generator to the mold, and is supported by a mechanical arm that moves it to "zero weight" thus permitting the operator to manually position and guiding it with ease along the edges tobe repaired.

The high power (200 Joules) allows to bring chopsticks wire 1mm in diameter but also lowering the power can be finished very small areas of mold very large and expensive.

Electronic and optical components of foRza 200, is of highest quality standards and guarantee high animating cycles of work, visual quality and excellent reliability.

Applications of Laser foRza 200

Repair of large molds (up 1000 x 1000mm) Carryover of steel stirrers directly on edges ruined Salda elements using filler materials, and leaves them clear, sharp and no need to clean up. Repair errors or design of molds. Repairing casting defects such as porosity or fractures, simply by welding in those areas of the filler wire.

New offers from laser foRza 200

The laser head is moved by a mechanical arm manual. The operator can adjust the position of the focus manually with extreme precision. LCD shutter dual brightness Discharge rate 40 Hz Automatic calculation of 'worn lamps laser resulting in automatic adaptation of' energy set.

Model	FoRza-200
Maximum Laser Power	200J @ 15mS
Peak Pulse-Power	15 Kw
Avg. Pulse-Power	100 W
Frequency of Repetition	0.5 to 40Hz
Spot Size	0.2 to 2.0 mm
Type of Generator	Double Lamp
Program	Pulse Shaping 6 presets
Program Memory	cells 100
Weight (Approx)	80 kg
Dimension (W x D x H)	500 mm x 800 mm x 1300 mm

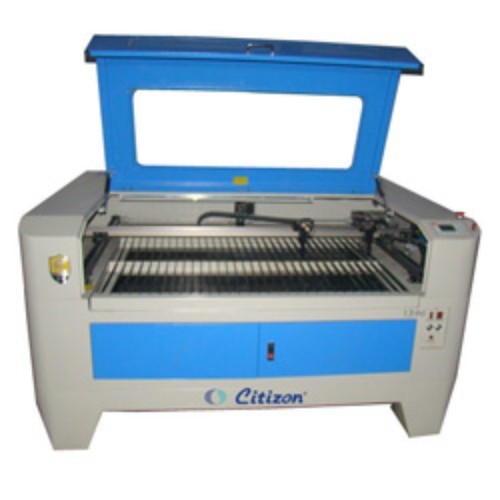

IncCO2 Laser Marker Machine

CO2 Series

Technology
Based on CO2 Lasers which is highly reliable laser source which used in many industries.

Quality
The cut quality of a CO2 laser remains constant throughout all ranges of material thickness.

Application :
Mainly used to cut engrave many kinds of non-metal materials, such as Acrylic, Wood, Bamboo products, Cloth, Plastic, Marble, Glasses, PVC, etc. CO2 laser cutter can process the Plexiglas products, acrylic display panel lenses, wood carving, wood percutaneous flowers, advertising products, crystal characters, packing boxes, models, toys, furniture and so on.

Cutting on Non - Metals :
Co2 lasers also have the capability of cutting wood and acrylics, thereby providing greater flexibility to niche industries where the need to cut these materials is a necessity..

Low maintenance :
The low cost and minimal maintenance requirements of low-power CO2 lasers make them appealing to many manufacturers plus, they offer users the benefits of small size, rugged construction.

Model	CCO2-193	CCO2-693
Working Area	1300mm x 900mm	600mm x 900mm
Laser Power	90 - 100w / 100 - 130w / 130 - 160w	60w / 80w / 90 - 100w / 100 - 130w
Max. Cutting Depth	Max. 20 / 25 / 30mm Acrylic (approx)	Max. 10 / 15 / 20 / 25mm Acrylic (approx)
Laser Type	RECI Glass CO2 laser tube
Life span Max.	10000 hours
Default Software	Laser Cut Engave
Controller	DSP Control
Max. Engraving Speed	0-1000mm/s
Max. Cutting Speed	0-600mm/s
Positioning Accuracy	<0.01mm
Maximum forming character	English:1.5 x 1.5mm
Power Supply	220V±10% 50HZ or 110V±10% 60HZ
Software Supported	ArtCut, CorelDraw, PhotoShop, AutoCAD
Graphic Format Supported	PLT, DXF, BMP JPG, GIF, PNG, TIF and so on
1 Air Pump and 1 Water Pump	Yes
Exhacusting System	Yes
Net Weight (Approx)	400 kg
Gross Power	<1200W
Dimension (L x W x H)	2200 mm x 1545 mm x 1400 mm	1450 mm x 1100 mm x 1070 mm

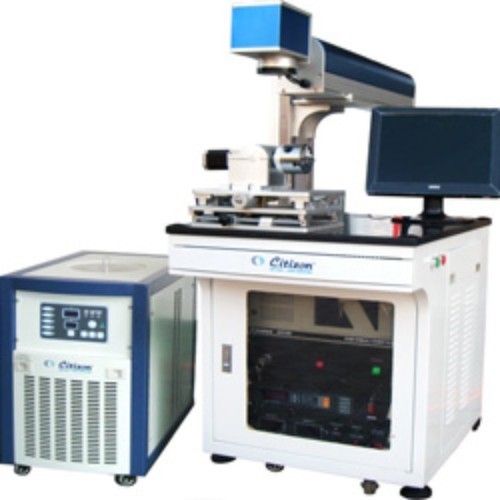

IncDiode Pump Laser Marking Machine

CLDP 50E

Dependability
Sturdy frame structure for lowest vibration, standard industrial PC for trouble free operation makes it ideal for continues operation like Hallmarking Centers Factories.

Compatibility
WINDOWS based marking software. able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, BMP, JPEG.

Flexibility :
Optional Motorised Rotary Marking Device for accurate Continuous 360ºMarking in / outside Bangle Rings.

Economical
CLDP 50E is Most economical laser marking machine yet best in performance.

Technology :
Based on ND-YAG diode pump laser technology.

Conveniency :
Auto Height Adjustment makes this machine most convenient for the difference samples of size shape.

Marking :
Able to mark all metals and some nonmarking engraving.

EASE:
Support for auto-coding, serial number, batch number, date, bar code and two-dimensional codes.

Application:
Based on ND-YAG diode pump laser technology.

Application :

Jewellery Hallmarking Centers
Jewellery Factories
Hardware Tools
Electronics Components
Auto Parts
Medical Equipments
Clock Watches
Ceramic
Translucent Plastic Keys
Spectacles

Model	CLDP 50E
Laser Source	Diode Pump Laser
Laser Source Lifetime About	< 10,000 hours
Maximum Laser Power	50 W
Laser Wavelength	1064nm
Beam quality	M² < 6
Laser Repetition Frequency	<30kHz
Working Area	100mm x 100mm
Engraving Depth	<0.3mm
Engraving Line Speed	<7000mm/s
Cooling System	Water Cooling
Min. Line Width	0.015 mm
Repeatable Accuracy	±0.003 mm
Overall System Power	2.5 KW
Power requirement	220V/single phase / 50Hz / 15A
Main System Dimensions	1010 mm x 620 mm x 1310 mm
Cooling System Dimensions	560 mm x 360 mm x 50 mm
Weight (Approx)	230 kgs
