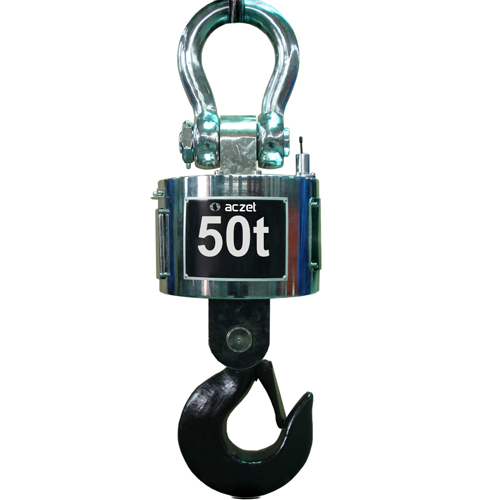

Wireless Crane Scale

Wireless crane scale is a good measuring instrument for weighing suspended goods. Weighing data is transmitted wirelessly. Weighing is convenient accurate, and reliable, it has various functions and is suitable for handling goods online. When using wireless electronic crane scale, it will save a lot of weighing time and cost and also can improve the efficiency. The most important thing is that it can be sued in many places.

Standard Features

Rugged Heavy duty design.
Steel housing scales body.
Safe over load 150% of FS.
Ultimate overload 200% of FS.
Rugged & heavy duty designed.
Safe & Durable Construction.
ON /OFF, Change, Zero, Lock.
Weighing result locking key
Available to freeze the weight & read at your convenient.
High tension shackle & Hook.
2000 Weighing records can be store.

Power

Built-in Rechargeable battery (100hrs) approx) DC 6V/10A, AC Adaptor output 6V/1A.
Frequency : 450MHz.

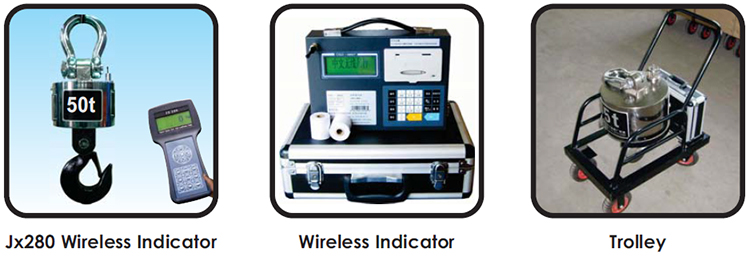

A) Wireless Indicator with built-in Printing indicator or JX 280 Wireless Hand Held Indicator.
B) Trolley Stand for crane.
C) Anti Heat Shield on request for High Temperature.
D) RS 232 Interface (Optional)

Capacity	5 Ton and over
SAFE DISTANCE FORM MELTING OBJECTS	1000º C 1.5 Meters 1200º C 1.8 Meters 1400º C 2.0 Meters 1600º C 2.5 Meters
FEATURES	Use in high heat application

Technical Specification

Model	HA 5TR	HA 10 TR	HA 20 TR	HA 30 TR	HA 50 TR
CAPACITY	5 Ton	10 Ton	20 Ton	30 Ton	50 Ton
GRADUATION	2 kg	5 kg	5 kg	10 kg	20 kg
