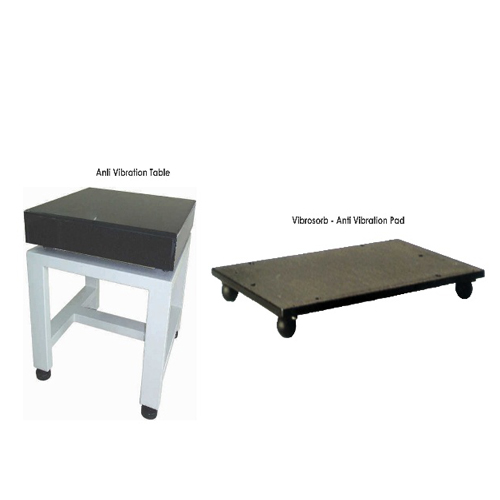

Anti Vibration Table
|
In most Industrial laboratories the production / process vibration is generated to the Lab area which makes it difficult to have stable reading from sensitive Instruments. To overcome these problems an Anti Vibration Tables can be used. The generated vibration is dampened by the anti vibration mounts provided in the AVT's / VIT's. "CITIZEN" has developed a special heavy duty type AVT / VIT which handle most kind of moderate vibrations with variation in the type of Mounts to suit different applications.
|
- Anti-Vibration Top : 100% Anti-Vibration area will be provided Well polished black color Granite laminated over thick heavy kadapa slab. Between 1" Height anti vibration rubber pad.
- MOC : Made of 18 Swg. Electro-Galvanized G.I. 50 x 100 Frame attractively finished in epoxy powder coating.
- Anti-Vibration mounts : provided at 2 stage for double dampening effect. Mounted on shock absorbing special heavy duty Anti-Vibration mounts. 4 Nos. below the work top and 4 Nos. on foot of the table.
- Foot level height adjustment.
- Special Shore 'D' hardness Rubber used for the Anti Vibration Mounts.
- All AVT's / VIT's are tested with calibrated Vibration meter.
- Working Height of Table can be Sitting – 750 mm or Standing – 900 mm
- Anti-Vibration Top : 100% Anti-Vibration area will be provided Well polished black color Granite laminated over thick heavy kadapa slab. Between 1" Height anti vibration rubber pad.
- a) Standard Elastomeric Mounts.
- b) Advanced Shock Resistant Air Spring Mounts. (NEW)
- c) Advanced Auto Leveling Pneumatic Mounts. (NEW)
Anti vibration table can be used with as a base for analytical, laboratory or control balance. It has been designed for assurance of stable operation conditions while performing very accurate measurements.
| Model |
Length |
Width |
Height |
| VRD - AVT 600 (mm) |
600 |
600 |
750 / 900 |
| VRD - AVT 900 (mm) |
900 |
600 |
750 / 900 |
| VRD - AVT 1200 (mm) |
1200 |
600 |
750 / 900 |
| Model |
Length |
Width |
Height |
Weight |
| VRD 01 - Small (mm) |
210 |
200 |
25 |
4 kg |
| VRD 02 - Medium (mm) |
315 |
215 |
25 |
6.5 kg |
|
|
|
