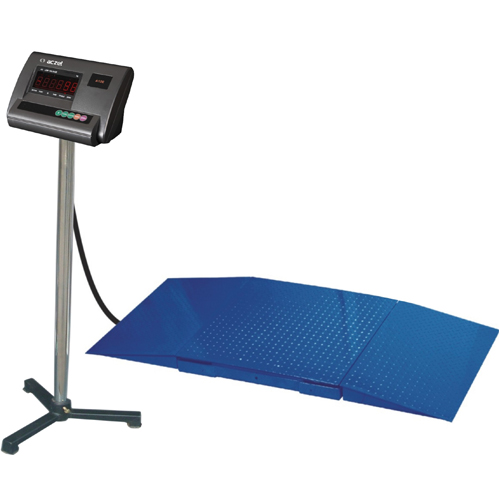

Ultra Low Profile Platform 4 Load Cell scale (M. S.)

Standard Features

High resolution up to 15,000 Counts.
Four load cell structure for rugged and durable weighing.
Built-in rechargeable battery for continuous use.
Handles for convenience of positioning and removal.
Ultra-low, chequred plate with both side reversible ramps for easy goods movability.
Safety overload protection.

Power Supply

AC 230V + 10% 50-60Hz & with built-in rechargeable battery backup.

Optional

4-20MA & Set point facility
RS 232 interface Port facility

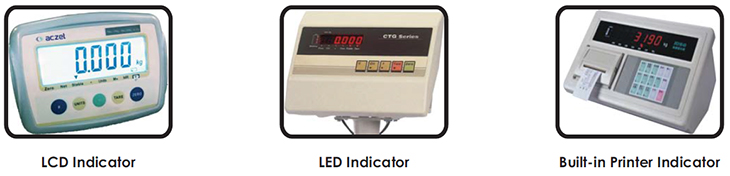

Built-in Printing Indicator

Display

0.56" Bright RED LED/LCD display.
Environmentally protected load cell.
Safety overload 150% of FS

Technical Specification

Model	CTG 600L U.M.S.	CTG 1 4L U.M.S.	CTG 2 4L U.M.S.	CTG 3 4L U.M.S.
CAPACITY	600 kg	1 Ton	2 Ton	3 Ton
READABILITY	100 gm	200 gm	500 gm	1 kg
PAN SIZE (MM)	600 x 600 / 23.6” x 23.6”	1000 x 1000 / 39.4” x 39.4”	1200 x 1200 / 47.2” x 47.2”
DISPLAY	Bright RED LED / LCD Display
POWER SUPPLY	AC 230V + 10% 50-60Hz

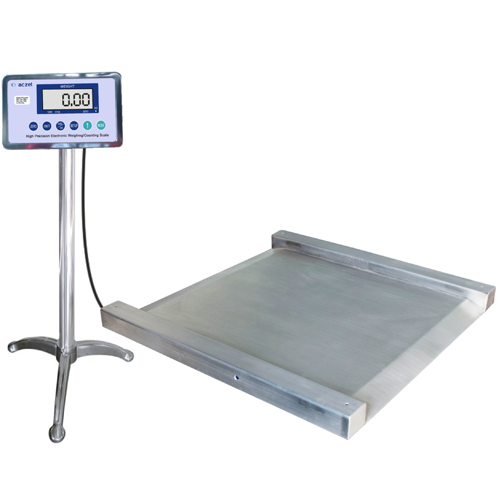

Ultra Low Profile Platform 4 Load Cell Scale S.S. (Stainless Steel)

Standard Features

High resolution up to 15,000 Counts.
Four load cell structure for rugged and durable weighing.
Built-in rechargeable battery for continuous use.
S.S. 304 Stainless Steel structure for washdown & Anti corrosive application. (Available on S.S. Version only).
Safety overload protection.
Ultra-low profile, 70mm approx height of platform for easy weighing.
Environmentally protected load cell protection class IP 67.

0.56” Bright RED LED/LCD display.

AC 230V + 10% 50-60Hz & with built-in rechargeable battery backup.

4-20MA & Set point facility
RS 232 interface Port facility
Built-in Printing Indicator
Stainless Steel indicator housing for washdown application.

Technical Specification

Model	CTG 600L U.S.S.	CTG 1 4L U.S.S.	CTG 2 4L U.S.S.	CTG 3 4L U.S.S.
CAPACITY	600 kg	1 Ton	2 Ton	3 Ton
READABILITY	100 gm	200 gm	500 gm	1 kg
PAN SIZE (MM)	600 x 600 / 23.6” x 23.6”	1000 x 1000 / 39.4” x 39.4”	1200 x 1200 / 47.2” x 47.2”
DISPLAY	Bright RED LED / LCD Display
POWER SUPPLY	AC 230V + 10% 50-60Hz
