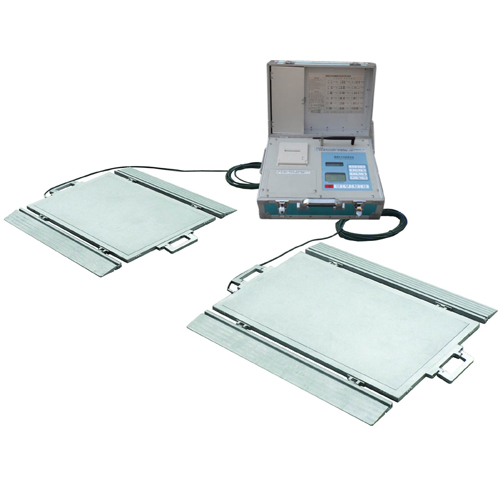

Easy-to-measure small/large size vehicle for overload.
Double LCD Display with Backlit.
RS 232 Serial Port for PC Connectivity.
24 bit high-conversion ADC, conversion velocity is up to 1000/s
Micro Printer is embedded, the printer ticket contains date, time truck no, ticket no, axle weight, truck weight, Overload and executive enforcement organization.
Possible to display weight of Per Axle and Total Weights.
Outstanding water resistant and Vibration-proof effect.
Built-in Rechargeable Battery with Charger.
Built-in Clock & Dot Matrix Printer.
Floating technology is adopted to remove zero drift.
Facility to enter the Truck Number Max. 12 Digits (Alfa Numerical)

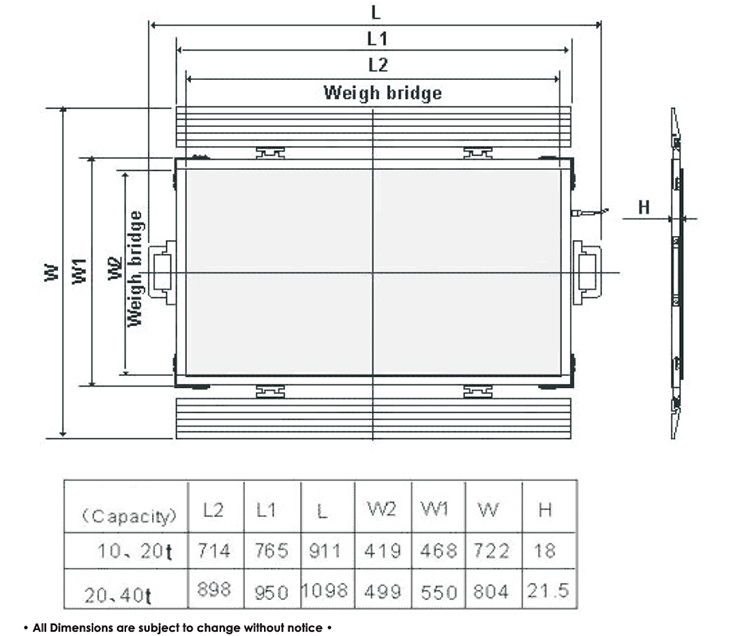

Dimention of Weigh Pad
Technical Specification
Model
WB 20 PT
WB 30 PT
WB 40 PT
CAPACITY / PAD
Ton
20 Ton
30 Ton
40 Ton
READABILITY
Kg
20 Kg
20 Kg
50 Kg
OUTPUT SENSITIVITY
mV/V
1.2mV / V, +0.1mV / V
NON LINEARITY
% FS
0.3%
ACCURACY - DYNAMIC MODE
% FS
<20%FS, +3%
F.S. at < 5km/h & >20% FS, +5% F.S. at <5 - 10km/h
