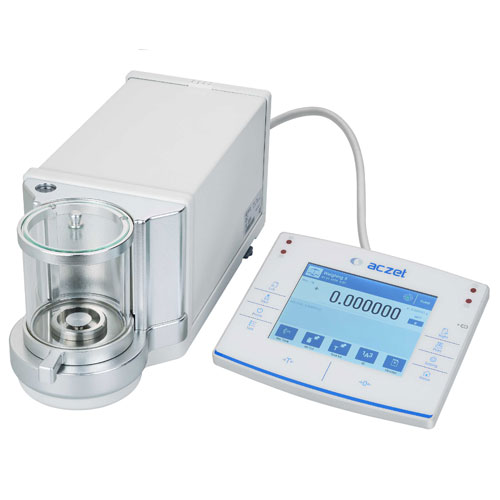

Touch Screen Micro Balance

Touch Screen Micro Balance

Our Latest Micro Balance has been designed to meet high requirement for measuring small masses with high readability (d=1mg). They are equipped with Touch Screen display with user menu. In order to guarantee proper accuracy of measurement, a standard weight half automatic system of external calibration with E1 Standard Weight has been applied.
Micro Balance consist of two balance components One of them contains electronic modules & other precise mechanical measuring system. Such solution guarantees elimination of temperature changes influencing the indication micro balance.
Micro balance CM series are offered with capacity 2gm to 22gm. (With readability 1µg) Balance are equipped with esthetic, cylindrical shaped weighing chamber with glass draftshield. All elements of weighing chamber are manufacturer form glass of metal which minimize the influence of electro static charges on weighing result. Micro Balance equipped with user friendly menu. User has access to multiple functions & measuring units which allow for specification for working requirements.

Hands free operation: Sensors provided for hands free operation for auto door opening.
Level adjustment guide: Balance will provide level warning in case of out of level and will not allow user to add result to protocol if balance is not leveled. Graphical level bubble has been provided for leveling.

Micro Balance software allows for composition GLP procedures as standard print out or as freely definable non-standard print out series.
Micro Balance are the first choices for measuring the smallest sample quantities.
A Micro Balance consists of two components - one containing the electronics and the other, the precise mechanical measuring cell. This separation eliminates the effects of temperature and the influence it has on the performance of your Micro Balance scale.
Filter Micro Balances are the first choice of Emissions Testing Gravimetric Determination of pertuculate Metter (PM2.5 Software).
USP (United States Pharmacopeia) 21CFR Part 11 Compliance Available on Request.
Standard Features
  • Touch Screen Display
  • Standard RS 232 interface / USB / Ethernet
  • Inbuilt system of internal calibration with initial calibration
  • Auto calibration according to change in ambient temperature.
  • User selected time calibration
  • Various application other than just simple.
  • Weighing like
  • % Weighig
  • Filling
  • Check Weighing
  • Statistic
  • Complies to GLP / GMP
  • User Management
  • Weighing cell with overload protection.
  • Protective in-use cover.
Technical Specifications

MODEL CM 2A CM 5A CM 6A CM 11A CM 21A
CAPACITY 2 gm 5 gm 6.1 gm 11 gm 21 g
READABILITY 1 µg 1 µg 1 µg 1 µg 1 µg
REPEATABILITY(+/-) 1.5 µg 1.6 µg 1.6 µg 0.0025 mg (for 1g) 0.0025 mg (for 1g)
LINEARITY(+/-) 0 - 500µg - ± 2µg

500µg - 2gm - ± 4µg
0 - 500µg - ± 2µg

500µg - 5gm - ± 4µg
0 - 500µg - ± 2µg

500µg - 6.1gm - ± 4µg
0.010 mg 0.010 mg
PAN SIZE(mm) 30Ø / 1.2"Ø (Standard Pan)
50Ø / 1.9"Ø (Standard Filter )
0.010 mg
TARE RANGE Full Range Full Range
CALIBRATION (PSAC) Perfect Auto Internal Time & Temp. Controlled Smart Calibration Perfect Auto Internal Time & Temp. Controlled Smart Calibration
DISPLAY REFRESH RATE 5 time/sec 5 time/sec
DISPLAY TFT Touch Screen Display LCD Graphic Display
STABILIZATION TIME 8 - 10 sec 8 - 10 sec
UNIT OF MEASURE g, mg, ct, GN, mo,oz, dwt, etc. g, mg, ct, GN, mo,oz, dwt, etc.
SENSITIVITY DRIFT ± 2ppm/°C (10 to 30°C, when automatic self-calibration is OFF) ± 2ppm/°C (10 to 30°C, when automatic self-calibration is OFF)
INTERFACE RS232 interface / USB / Ethernet RS232 interface / USB / Ethernet
OPERATING TEMP. 18°C to 30°C, 85% RH 18°C to 30°C, 85% RH
POWER SUPPLY A/C Adaptor 30 V A A/C Adaptor 30 V A
ANTISTATIC MEASURE Automatic minimization of static charger Automatic minimization of static charger
FREE HEIGHT ABOVE WEIGHING PAN 90mm, ±5mm 90mm, ±5mm
NET WT. / GROSS WT. 10.20 kgs / 14.70 kgs 10.20 kgs / 14.70 kgs
WEIGHING CHAMBER 90 x 90mm 90 x 90mm
PACKING SIZE 565 x 565 x 355 / 22.2" x 22.2" x 14" 565 x 565 x 355 / 22.2" x 22.2" x 14"
READABILITY 0.001 mg 0.001 mg
CALIBRATION Controlled Smart Calibration Controlled Smart Calibration
COUNTING MODE (MINIMUM UNIT MASS) 0.001 mg or less 0.001 mg or less
PRECENT MODE (Minimum 100% reference mass) - 10.0mg
% readability - 0.01%, 0.1%, 1% (depends on the reference mass stored)
10.0mg
% readability - 0.01%, 0.1%, 1% (depends on the reference mass stored)


Product Details

Readability 0.001 mg
Calibration Controlled Smart Calibration
Brand Aczet
Capacity 2 - 22 gm
Calibration With External Weight Software Inbuilt
Display Touch Screen Display
