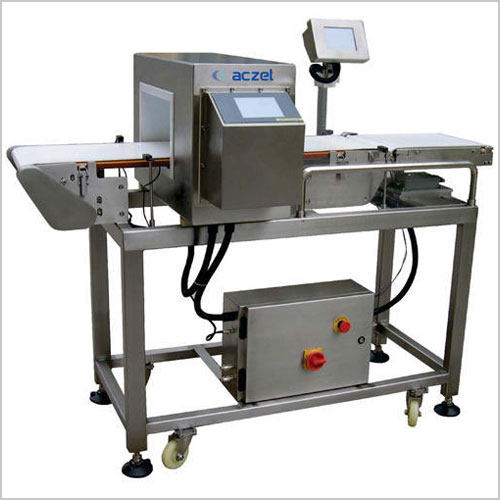

Checkweigher with Metal Detector Combo

Features

According to HACCP, GMP & FDA Standard
Strong Stainless Steel Structure
2000 logs and easy to look up and print out.
High accuracy sensor based on advanced, high speed Digital Proceesing Technology.
Dynamic compensation; Automatic ZERO ana lyzing and tracking.
100 Products Preset; Easy to edit and recall.
Quick product shift and belt speed recall.
Stainless Steel Conveyor with high waterproof level design.
Based on friendly touch screen operation.
Based on 32bit high speed CPU.
Multi-functional operation system.
Digital Signal Processing technology and multiple digital filter.
Automatic reject system, different reject device for option.
Advanced product effective learn.
Detection frequency optional. (Factory Preset)
Variety of peripheral system connection and setup.

Technical Specification

Model	CMD 3K
DETECTION THEORY	Balanced Coil / Digital Load Cell
BELT SPEED	60 m/min.
ACCURACY	± 0.5g
SENSITIVITY	Fe 0.5mm, Non-Fe 0.8mm, SS 1.0mm
WEIGHING RANGE	10 ~ 3000g
MINIMUM SCALE	0.1g
REJECT DEVICE	Pusher / Air Jet / Flapper
DISPLAY	Graphical with Touch Screen
ALARM METHOD	Buzzer and lamp
POWER SUPPLY	AC 110V/220V, 50-60Hz
RATED OUTPUT	Appro. 300W
DIMENSION	1630mm (L) x 800mm (W) x 750 ±20mm (H)
