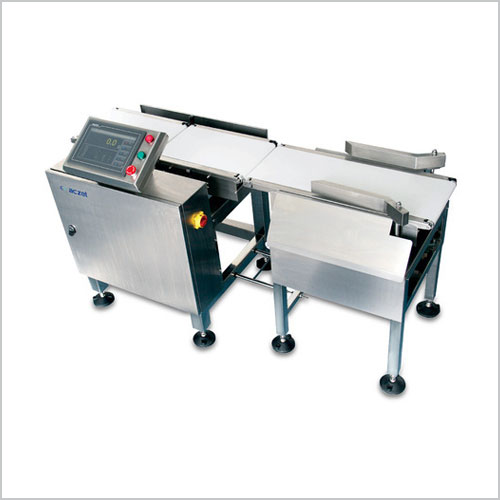

Check Weigher CW 1 K

Check Weigher CW 1 K

Check Weigher CW 1 K offered comes with fully automatic operations that match up with the complete operation demands from weighing individual capsule to meeting the requirements of printing report with statistical data. With the system designed to offer precision weighing balance with 1mg accuracy as well as repeatability, it is made available with interfacing system that allows switching off machine in event of capsules going beyond the set limits. Further, these feature completely enclosed as well as sturdy design that does not allow transfer of machine vibration to the weighing balance. Other than this, the provision of recording date & time, statistics result & operator detail, graph, batch data and other factors also allow the system to deliver optimum functionality support. Designed to provide optimum control and regulation in all aspects of filling process, some of its working specifications include Hopper capacity of 30 capsules of ‘00’ (with capsule sizes from ‘00’ to ‘05’), Weighing capacity of 220 gm Max. / 360 gm Max, Least count of 1 mg, Accuracy of + 1 mg and Repeatability of + 1 mg.

Standard Features
  • Printing report with statistical data.
  • Precision weighing balance with 1mg accuracy and repeatability.
  • Interfacing system to switch off the machine, if capsules are beyond the set limits.
  • Completely enclosed & sturdy design, which will not transfer the vibration of the machine to the weighing balance.
  • Provision for recording graph, batch data, date & time, statistics result & operator detail etc.
  • Either more than 1 or no capsules recorded, programmer will not consider the weight & will not print.
  • Provision of viewing the reading sample being weighed on the monitor.
  • Provision of viewing the result on Tower indicator.
Overfilling is a waste and underfilling is unacceptable. The solution for all your laboratory needs is CITIZEN’s line of SQC systems, which control and regulate all aspects of the filling process.

Technical Specifications

Parameter/Model Standerd Weight Subarea
Hopper capacity 30 capsules of ‘00’
Capsule Sizes ‘00’ to ‘05’
Weighing balance details
Aczet CY 220, CY 360
Aczet Scales INC
Weighing capacity 220 gm Max. / 360 gm Max.
Least count 1 mg
Accuracy + 1 mg
Repeatability + 1 mg
Zero setting Automatic by tare in the balance, before every sample
Limit setting Programmable, using key board, + % of upper & lower limits
Interface RS 232 C, BI directional, through controller
Ambient 5 to 30 deg. C, And R.H. 25 to 65%
Mains power A/C Adapter 230V or 115V +/- 20% 50-60 Hz
Data print out Lexmark Deskject Printer
Capsule feeding 24 VAC Electromagnetic vibrator with amplitude adjustable Pot Capsule feeding
