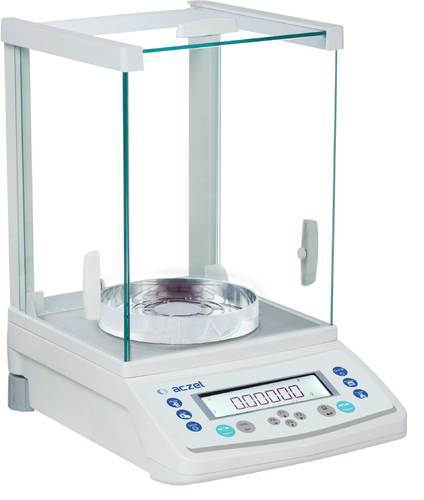

Semi Micro Balance

Semi Micro balances are sensitive against environmental influences and the installation place should be selected carefully.

Application

Weighing
Net / Total
Check Weighing
Weight accumulation
Piece counting
Animal Weighing
Dynamic Weighing
Density determination
Below balance weighing
IP Protection : IP 54
Spacious draft shield interior
Two tare keys (Left & Right)

Product Details

Brand : Aczet
Users : Up to 25 users
Memory : ALIBI memory
Controls : Touch Screen
Display : Digital

Sprit leveling

Balances have adjustable feet fro maintaining / providing uniform level.

Electromagnetic Compatibility

Metal housing eliminates the effects of thunderstorms or electromagnetic inter-ference from other equipments.

Power Saving Mode

Auto zero tracking

Perfect Self Auto Calibration (PSAC)

When the ambient temperature changes by a specific value or once a defined time interval has elapsed, it performs Internal Calibration.

The Briliant Mono-Tech

Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards.

Overload Protection

Capacity tracker built into display for easily monitoring possible overloads.

Excellent Readability

High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions.

GLP

Built-in clock make all your documents ISO / GLP / GMP compliance.

Easy Data Transfer

Interface RS 232C Optional USB (Windows direct communication).

Anti-theft device

Balance are equipped with a lug for optional anti-theft device. The anti-theft device (cable with lock) is suitable for all models.

Statistics

This smart feature enables the user to obtain the statistics of the data stored in the scale including details such as number of readings, minimum value, maximum value, standard deviation, difference and Coefficient of variance.

Technical Specification

MODEL	CY 205C	CY 105C	CY 265N	CY 265C	CY 165C	CY 85C	CY 65C
CAPACITY	210 gm	100 gm	80 / 220 gm	60 / 210 gm	100 / 160 gm	80 gm	60gm
READABILITY	0.01 mg	0.01 mg	0.01 / 0.1mg	0.01 / 0.1mg	0.01 / 0.1mg	0.01 mg	0.01 mg
REPEATABILITY (SD)	0.03 mg	0.03 mg	0.03 mg	0.02 mg	0.02 mg	0.03 mg	0.03 mg
LINEARITY(+/-)	0.1 mg	0.1 mg	0.06 mg	0.06 mg	0.1 mg	0.06 mg	0.06 mg
TARE RANGE (SUBTRACTIVE)	-220 gm	-100 gm	-220 gm	-210 gm	-160 gm	-80 gm	-60 gm
MINIUM LOAD	1 mg
MINIMUM SAMPLE WT. AS PER USP	20mg
MINIMUM WT. AS PER (U=1%, SD=2)	2 mg
PAN SIZE (MM / INCH)	80 Ø / 3.15” Ø
RESPONSE TIME	5 - 8 Sec.
DISPLAY	Alpha numeric LCD Backlite Dispaly with A.E.P.
CALIBRATION	Perfect Auto Internal Time & Temp Controlled Smart Calibration
UNITS OF MEASURE	gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
OPERATING TEMP.	15º to 35ºC
SENSITIVITY DRIFT.	-6 ± 2ppm (2 x 10 / ºC)
APPLICATION MODES	PCS, % Weighing, Animal / Dynamic Weighing Check Weighing,
POWER SUPPLY	Automatic Density, Determination, Formulation Automatic Statistic Calculator etc. A/C Adaptor 230V or 115V / +/-20% 50-60Hz
COMPLIANCE	ISO, GLP / GMP USP Compliance
HOUSING DIM. / CHAMBER HEIGHT (MM)	342.5 (W) x 212 (D) x 341 (H) / 228.5 (H)
WEIGHT APPROX	8 kg
