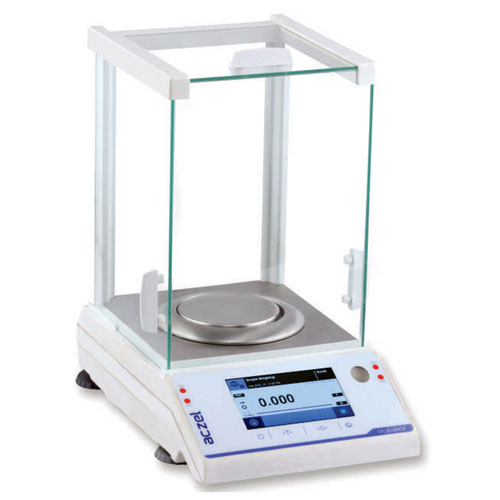

Touch Screen Semi Micro Balance

The CY-A series represents a new advanced level for analytical balances. The CY-A series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitate selection of the most optimal means for communication. The CY-A series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer.

Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed hands free, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel.

ALIBI Memory

The CY-A series balances feature ALIBI memory that is a warranty for safety and automatic recording of your measurements. Options such as data preview, copying and archiving are available to users as well.

The ALIBI memory allows to record up to 500 000 weighment records.

Personalization taken to the next level

The CY-A is the only balance available on the market that provides a user with the option to design display using wide selection of widgets. Customised display of CY-A series offers direct access to the results of your work and other important information directly from the home screen.

Weighing Data Management

USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to other balances. Network management of the weighing data increases effectivity, productivity and safety of the important data to the maximum.

Databases in CY-A series balances

In new CY-A series balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.

The data is registered in 7 databases:

Users (up to 25 users),
Products (up to 5 000 products),
Weighments ( u p t o 5 0 0 0 0 weighments),
Packaging (up to 100 packaging types),
Formulas (up to 100 formulas),
Clients (up to 100 clients),
ALIBI memory (up to 500 000 weighments).

The CY-A series features option of making reports of 2 different categories:

Reports on formulas (up to 200 reports),
Reports on density determination (up to 500 reports).

Technical Specification

Model	CY 285A	CY 255A	CY 105A	CY 205A
MAXIMUM CAPACITY	80 / 220 g	100 / 220 g	100 g	200 g
MINIMUM LOAD	1 mg	1 mg	1 mg	1 mg
READABILITY	0.01 / 0.1 mg	0.01 / 0.1 mg	0.01 mg	0.01 mg
REPEATABILITY (SD)	0.02 / 0.1 mg	0.02 / 0.1 mg	0.02 mg	0.03 mg
LINEARITY(+/-)	0.04 / 0.2 mg	0.05 / 0.2 mg	0.05 mg	0.07 mg
TARE RANGE (SUBTRACTIVE)	-220 g	-220 g	-100 g	-200 g
USP MINIMUM WEIGHT	20 mg	20 mg	20 mg	20 mg
PAN SIZE (MM / INCH)	80 Ø Grid Pan
RESPONSE TIME	1.5 Sec
DISPLAY	Colour Graphic Touch Screen Display
CALIBRATION	Motorised Internal Calibration
UNITS OF MEASURE	gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
OPERATING TEMP.	15°C to 35°C
SENSITIVITY DRIFT.	+ 1ppm (1x10^-4 / °C)
INTERFACE	RS 232C Optional USB (Window direct communication)
APPLICATION MODES	PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, Automatic Density Determination, Formulation Automatic Statistic Calculator etc.
POWER SUPPLY	DC Adapter, Input 100 - 240, 0.8A Output 13V / 1.5A, 50 / 60Hz
COMPLIANCE	ISO, GLP / GMP Compliance
BALANCE SIZE (W X D X H) MM	342.5 x 212 x 341 / Chamber Height : 228.5
WEIGHT APPROX	8 Kg / 9.3 Kg
