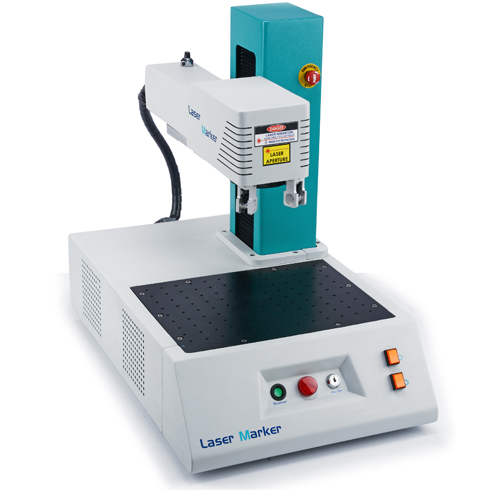

Professional Laser Marker Machine - CFM Series
|
Based on Ytterbium Fiber Laser Which is highly reliable laser source.
Able to mark all metal and some nonmetal materials. marking minimum lines width of 0.03 mm, minimum height of 0.3 mm for english characters and depth of up to 1mm*
Sturdy frame structure for lowest vibration and trouble free operation makes it ideal for continues operation like Hallmarking Centers & Jewellery Factories*.
|
Latest Air Cool Technology makes this machine work on a low power consumption of below 800W* thus makes it most energy savings.
Ergonomically designed & can easily connect with Laptop (Optional), make this machine very compact & can be placed on workstation, taking up a small working space convenient to use for small factories & showrooms.
Support for auto-coding, serial number, batch number, date bar code and two dimensional codes.
WINDOWS based marking software, able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG.

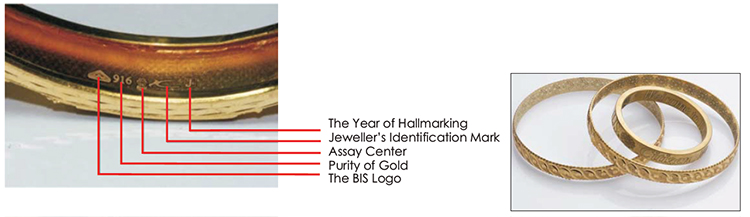

Optional Motorised Rotary Marking Device for accurate & continuous 360ยบ marking inside or outside bangles & Rings.
Complete enclosed laser module design with the optical fiber transmission pump light source & air cooling systems, which offers better protection for the laser devices hence reducing the failure rate.

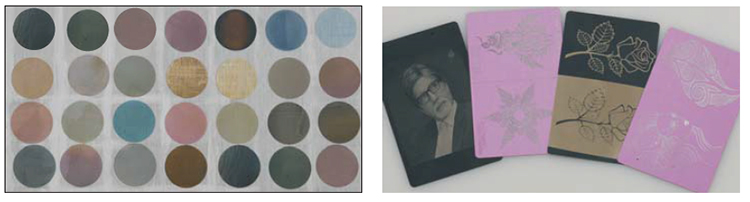

| Optional Colour Laser Marking
|
The open designed for easy access to the working area and movement of marking objects. Sturdy & rugged designed M.S. structure for years of operation. Auto head adjustment for positioning samples. Standard Joystick for easy operation. |
The Open LASER Marker is also equipped with optional rotary axis device which facilitates LASER Markings on curved surfaces such as the inner or the outer face of rings, bangles and bracelets. |
The "OPEN" Laser Marker is able to meet the highest standards of quality set by the most renowned producers of highend jewellery. It is perfect for engraving all types of precious and semi-precious metals, steel, titanium and many other materials, metallic and non. |
Optional Accessories
|
Zig
 |
Rotary
 |
Eye Protector
 |
| Model |
CFM
20E |
CFM
20P |
| LASER SOURCE |
Ytterbium Pulsed Fiber Laser |
| LASER POWER |
20W |
| WAVELENGTH |
1064 nm |
| BEAM QUALITY M2 |
M2 >1.6 |
| PULSE REPETITION RATE |
20 Hz - 100KHz |
| MARKING AREA (MM) |
70 x 70 / 100 x 100 (Optional) |
| MARKING SPEED |
< 15000 mm/sec |
| LASER FREQUENCY |
20 - 100 kHz |
| COOLING SYSTEM |
Air Cooling |
| MINIMUM WIDTH |
0.03 mm |
| MINIMUM CHARACTER |
0.3 mm |
| REPEATABILITY |
0.003 mm |
| POWER CONSUMPTION |
800 W |
| POWER SUPPLY |
220 V AC, 60 Hz / 1P / 4A or
110V / 50Hz / 1P / 8A |
| DIMENSION (LXWXH) |
600 x 460 x 530 |
| NET WEIGHT |
45 Kgs |
|
|
|
