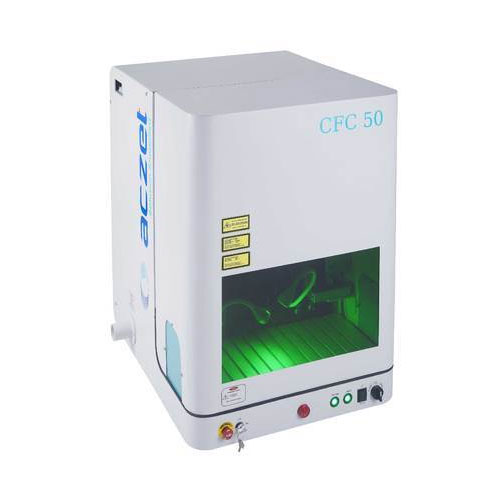

Professional Cutting Machine - CFC Series
|
Requirements for Logos, Text Designs and Graphics Patterns are commonly used in Jewellery and Industries for which Laser Maker is a common tool which is indispensable in such Industries. The new generation Aczet CFC Series has solution with 50/70 W output power which enables to get the job done with quality and reduces working time. The machine is capable to cutting metal sheet upto 1.00 mm of thickness.
|
CFC Series is based on high performance Ytterbium Pulsed Fiber Laser with high frequency scanner head, offers productive performance, capable of getting most incensed work without compromising quality and precision with quality standards.
| Features of this new CFC Series
|

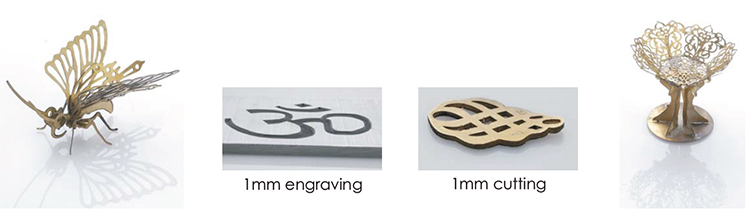

Powerful enough to cut up to 1-mm thick metal and few precious metal plates.
Standard automatic head moves ups & downs with auto controls makes samples positioning user friendly.
Operating commands can be viewed and executed using the software. The possibility to import images, models, logos, texts etc., from a broad range of files with different extensions.
The New CFC Series could also be fitted with a rotary axis device, to facilitate LASER-marking of curved surfaces, such as the inside or outside of ring, bangels or bracelets.
| Software Controlled Rotary
|
CFC Series can be provided with a rotary device with automatic movement, controlled by software. A tool necessary for LASER-marking rings, bangels, bracelets and all round or curved objects.
| Supports for Rings and Bracelets (Optional Device)
|
Especially designed to be firmly applied to the rotary axis device, these three-pin chucks are perfect for LASER-marking the inner or the outer side of rings, bangels, bracelets and items with a round shape.
| Automatic zig for Plate Cutting (Optional Device)
|
The automatic zig for metal plates provided by CFC Series makes it possible to mark and cut objects from a metal samples without bending.
| Software for LASER-Marking
|
Simple and easy to use, the software is able to import and export DXF, PLT, JPEG, BMP files. The software, is an easy and immediate tool for the management of functions
| Control through Foot Pedal
|
Once the job or the design pattern is ready and the required parameters are set foot pedal will do the job for you. Same job can be repeated several times without touching the application software.
Vaccum chamber designed in connection with dust collector allows to recover the dust inside chamber
| Minimum Order Quantity |
1 Piece |
| Output power |
50 - 70 W |
| Cutting metal sheet thickness |
Upto 1.00 mm |
| Laser Source |
Ytterbium Fiber Laser |
| Model |
CFC 50 / 70 |
| Brand |
Aczet |
| Condition |
New |
|
|
|
| Model |
CFC 50
/ 70 |
| LASER SOURCE |
Ytterbium Fiber Laser |
| LASER POWER |
50W / 70W |
| WAVELENGTH |
1064 nm |
| BEAM QUALITY M2 |
1.6 |
| MARKING AREA (MM) |
70 x 70 (Optional 100 x 100) |
| MARKING SPEED |
up to 7000 mm/sec |
| LASER FREQUENCY |
up to 700 kHz |
| COOLING SYSTEM |
Air Cooling |
| MINIMUM WIDTH |
0.02 mm |
| MINIMUM CHARACTER |
0.2 mm |
| REPEATABILITY |
0.002 mm |
| MARKING & CUTTING DEPTH |
upto 1 mm (can be achieved) |
| POWER CONSUMPTION |
800 W |
| POWER SUPPLY |
220 V AC, 60 Hz / 1P / 4A or
110V / 50Hz / 1P / 8A |
| DIMENSION (LXWXH)MM |
750 x 450 x 780 |
| DUST COLLECTOR |
Standard with Machine to
collect gold dust |
| NET WEIGHT |
100 kg |
|
|
|
