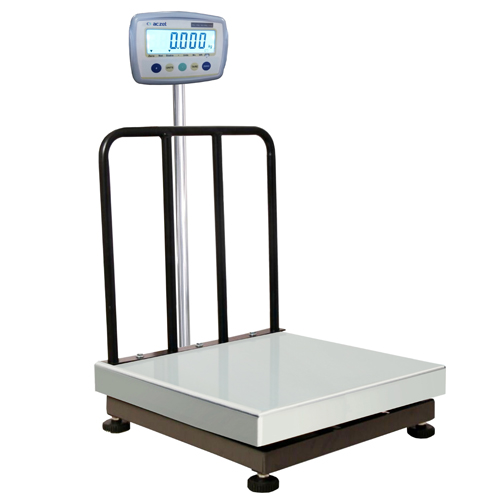

Platform Scale

Platform Scale

Standard Features

High resolution up to 15,000 Counts.
Easy to read (0.56") Bright LED/LCD Display.
Net Gross Function.
Built-in rechargeable battery for continuous use.
Environmentally protected load cell.
Back rail support provided.
Rugged construction suitable for Industrial Environment.

Power Supply

AC 230V +10% 50-30Hz & with built-in rechargeable battery backup.

Optional

RS 232C serial interface port facility.
Remote display available for customer.
4-20 mA, set Point facility.
A-Type Platform Roller & Ramp.
B-Type Platform Pit Mounted.

Application

Engineering industry
Ginning Industry
Grain Industry
Laboratory Industry
Chemical Industry
Pharma Industry & others

Technical Specification

Model	CTG 50	CTG 60	CTG 100	CTG 150	CTG 100	CTG 200	CTG 300	CTG 500
CAPACITY	50 kg	60 kg	100 kg	10 kg	100 kg	200 kg	300 kg	500 kg
READABILITY	5 gm	10 gm	10 gm	10 gm	10 gm	20 gm	20 / 50 gm	50 / 100 gm
PAN SIZE (MM)	400 x 400 / 15.5" x 15.5"		500 x 500 / 19.7" x 19.7"		600 x 600 / 23.6" x 23.6"
DISPLAY	Display Bright LED / LCD Display
POWER SUPPLY	AC 230V + 10% 50-60Hz
