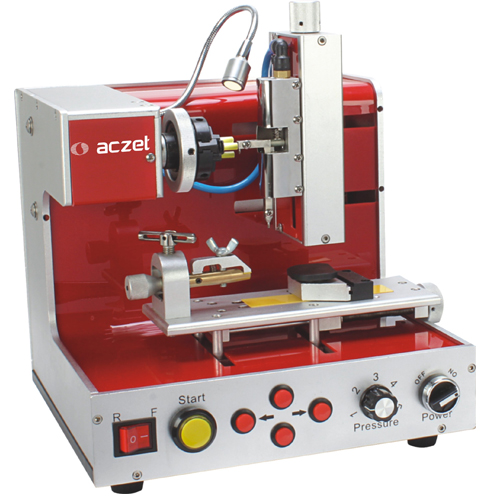

Multi Engraving Machine CPM-M

Multi Engraving Machine CPM-M



Technology
CPM-R is Needle Marking Machine, Specially design for Finger Rings & Bangles for inside & outside marking.

CPM-M is Needle Maddng Machine, Specially design for Finger Rings, Bangles for inside & outside marking flat surface pendants etc.

The New Generation Software C-Mark for Computerised Engraving Machine gives you professional engraving and personalisation solution at an affordable price.


Features
  • Compact design.
  • Standard C-Mark software with true type fonts, support, bold, italic, underline & engraving.
  • Uses 9 angle position system.
  • Depth 0.3 mm.
  • Repeat accuracy of 0.01 mm.
  • Shiny finishing without additional polishing.


Advantages
  • Very easy & convenient to use.
  • Can created your own fonts.
  • User friendly software.
  • Compact & Space Saving.
  • No hidden Maintenance Cost.

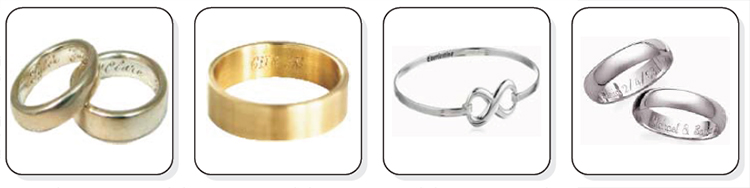

Engraving Samples
Ring Engraving Machine CPM-R


Technical Specification

Model CPM-M
POWER CONSUMPTION 75w
MIN. CHARACTER SIZE 0.5 mm - 15 mm
SIZE PER DOT 0.08 - 0.15 mm
MARKING DEPTH 0.05 - 0.50mm
ROTARY MARK 360°
MARKING TYPE In/Out side ring/bangle + Flat
INSIDE RING SIZE MARKING 12 - 70 mm
OUTSIDE RING SIZE MARKING 15 - 85 mm
PENDANT SCULPTURE RANGE 80 x 50 mm
RING WIDTH 20 mm
FONT Windows based fonts
SOFTWARE CITIZEN mark
POWER SUPPLY AC 220V (110v option) 50 - 60Hz
MACHINE DIMENSION (MM) 300 (L) x 300 (W) x 280 (H)
WEIGHT 14.0 kg
