Pipette Microbalance

Pipette Microbalance

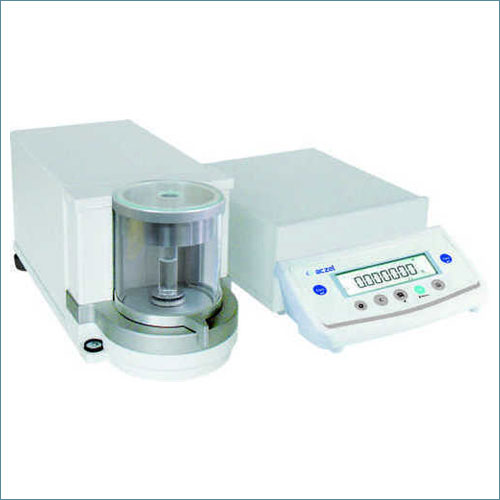

CM 21P series of balances has been designed to meet high requirements for measuring small masses with readability of d= 1 µg. The weighing chamber has been specially designed for calibration of pipettes. Non-centrically located aperture in the upper part of the chamber makes it easier to insert a pipette. Such a Solution Limits possible air droughts. Pipette calibration may be Conducted with a closed weighing Chamber. Micro Balances are equipped with graphic display with extended user menu. In order to guarantee proper accuracy of measurements, automatic system of calibration has been applied. Micro balance consists of two components. One of them contains electronic modules, and the other precise mechanical measuring system. Such solution guarantees elimination of temperature changes influencing the indication of the micro balance.

  Micro balance features aesthetic, cylindrical-shaped weighing chamber. All the elements of the weighing chamber are made of glass, which minimizes the influence of electrostatic charges on the weighing result. Micro balance software allows for composition of GLP procedures as standard printout or as freely definable non-standard printout. Balance series CM 21P is equipped with RS 232, PS/2 output and possibility of connecting additional display as standard.

  Micro balances MXA/1/P series is equipped with infrared sensors enabling opening of measuring chamber door and activating user defined functions of tare or printout.
Technical Data


MODEL CM 21P
CAPACITY 21 gm
READABILITY 1 µg
REPEATABILITY ( +/- ) 2 µg
LINEARITY (+/-) 2 µg
PAN SIZE (mm/inch) 20 Ø / 0.8”Ø
RESPONSE TIME 10 sec.
CALIBRATION Perfect Auto Internal Calibration
DISPLAY Graphical Backlite Display
UNITS OF MEASURE g.mg,ct,gm,mo,oz,dwt
OPERATING TEMP. 18ºC to 30ºC
POWER SUPPLY A/C Adapter 230 V or 115 V +/- 20% 50-60 Hz
WEIGHING CHAMBER Ø 90 x 90 mm
NET WT. / GROSS WT 9.80kgs / 14.30kgs
PACKING SIZE 565 x 565 x 355 / 22.2” x 22.2” x 14”


Additional equipment

PRINTER CPR 02 COMPUTER SOFTWARE : PW-WIN, RAD-KEY, REC-FS
VIBROSORB-ANTI VIBRATION TABLE CALIBRATION WEIGHT E2, F1, F2, M1 ( NABL, NPL, RRSL, STANDARD )
WEIGHTRACK COMPUTER SOFTWARE REMOTE DISPLAY

Technical Specifications

MODEL CMA11/61/1/P
Max capacity 11/61g
Readability 2/10 µg
Readability 4/10 µg
Linearity +/- 15 µg
Pan size ø50 mm
Weighing chamber dimensions ø90x90mm
Stabilization time 10s
Calibration automatic (internal)
Working temperature +18° -+ 30° c
Power supply 230V/ 11V AC or 12V / 11V AC


Product Details

Material to be measured Chemicals
Display Type LCD Display
Brand Aczet
Use Business
Linearity 2 micro gm
Response Time 10 sec
Readability 1 micro gm
Pan Size 20 mm / 0.8 inch
Condition New
Net Wt. / Gross Wt 9.80 kg / 14.30 kg
Packing Size 565 x 565 x 355 mm / 22.2 x 22.2 x 14 inch
Calibration Perfect Auto Internal Calibration
Units Of Measure g,mg,ct,gm,mo,oz,dwt
Operating Temp. 18 - 30 deg C
Weighing Chamber 90 x 90 mm
Repeatability 2 micro gm
Power Supply A/C Adapter 230 V or 115 V +/- 20% 50-60 Hz
Capacity 21 gm
Display Graphical Backlite Display

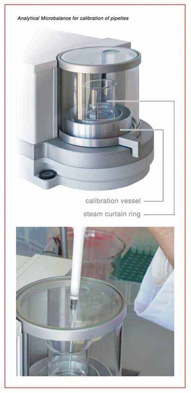

Calibration stand for pipette
Microbalances CMA/ 11 P In order to ensure measurement cohesion, and meeting all the requirements resulting from supervision over measuring equipment and to facilitate the process of pipettes calibration Our recommends effective and ergonomic solution of calibrating automatic pipettes conducted by a user complete calibration stand for pippets!

Purpose: calibration of automatic pipettes from 10µ to 10ml with constant and variable volume.
Microbalances CMA/ 11 P
Unit Contents
  • Table for calibration
  • Analytical microbalance CMA /11P
  • Anti-vibration table
  • Ionizer
  • Probe for temperature, humidity and pressure measurement
  • Probe for water temperature measurement
  • Sink for used water (for right-handed or left-handed)
  • Armrests
  • LCD monitor
  • PC with ore-installed software PIPETTES
  • UPS power supply
  • Keyboard and mouse
  • Container for used water
  • The pipettes and other small accessories are not included in the unit content.
Calibration stand allows to perform pipettes calibration procedure by a user. The stand features high functionality and ergonomics, it can be operated by both right and left-handed users. Stability and security of operation is guaranteed by of UPS power supply. Pipettes calibration stand comprises of three basic modules:
