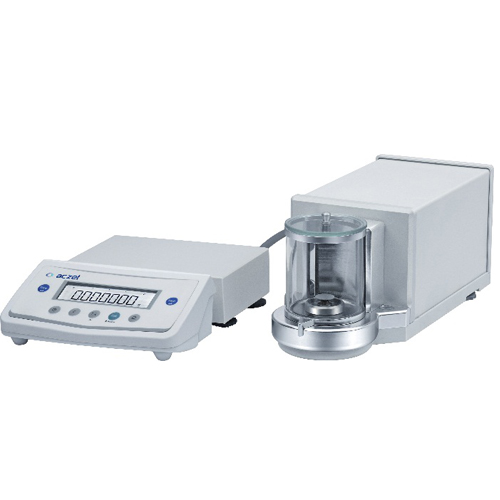

Micro Balance
|
All Aczet Analytical Balances are based on Electro magnetic force compensated principal.
In-built auto calibration with ambient temperature changes by specific value / time interval.
Standard RS 232C data interface makes communication with PC / Printer easier.
|
Micro balance consists of two components. One of them contains electronic modules, and the other precise mechanical measuring system. Such a solution elimination of temperature changes influencing the weighing of the micro balance and thus it yield great repeatability of your weighing results.
Facility to input IDNR number for individual readings.
| Statistical Calculation Function
|
Standard inbuilt statistical calculation
function helps user to maintain to data.
Ideal for Assaying & Hallmarking Centre
| MODEL |
CM 2 |
CM 5 |
| CAPACITY |
2 gm |
5 gm |
| READABILITY |
1 µg |
1 µg |
| REPEATABILITY |
1 µg |
2 µg |
| LINEARITY (+) |
3 µg |
5 µg |
| ECCENTRIC LOAD DEVIATION |
3 µg |
3 µg |
| PAN SIZE (MM) |
15Ø / 0.6”Ø |
| WEIGHING CHAMBER |
90 Ø |
| RESPONSE TIME |
8 sec. |
| CALIBRATION |
Motorised
Internal Calibration |
| POWER SUPPLY |
A/C Adapter 220
V / 50 - 60 Hz |
| DISPLAY |
Large LCD with
backlite LED display for easy viewing |
| INTERFACE |
Rs232 (Optional
USB on request) |
| WORKING TEMPERATURE |
+15°C ~ +25°C |
| APPLICATION MODE |
PCS, %, Animal
/ Formulation Weighing, Statistics,
Check Weighing, Automatic Density Determination |
|
|
|
