LCD Conversion Kit

Conversion Kit Range 300kg to 100 ton

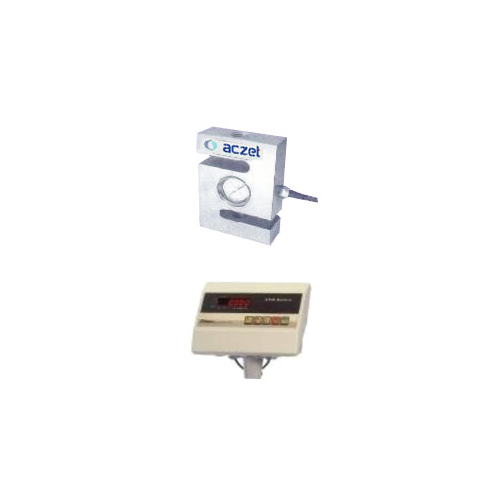

LCD Conversion Kit (Range: 300kg to 100 ton) offered are made available in high resolution of up to 15,000 counts and feature easy to read (0.8”) bright RED LCD display as well as built-in rechargeable battery for providing continuous usage value. Some of the optional features of the system include availability of remote display (for customer drive view), presence of RS 232 C Interface, Intelligent terminal/computer, environmentally protected load cell as well as rugged constructed finish. The specifications these are made available with include WB 30 CK (with max of 30 Ton and d 300 kg), WB 40 CK (with max of 40 Ton and d 500 kg), WB 50 CK (with max of 50 Ton and d 600 kg), WB 60 CK (with max of 60 Ton and d 1 Ton), WB 80 CK (with max of 80 Ton and d 2 Ton) and WB 100 CK (with max of 100 Ton and d 2.5 Ton). These can also be provided with options including Weight Track Software for handling the requirements of Govt. Stamping.
Standard Features
  • High resolution upto 15,000 counts.
  • Easy to read (0.8”) bright RED LCD display.
  • Built-in rechargeable battery for continues use.
  • Optional :-
    • Remote display available for customer drive view.
    • RS 232 C Interface.
    • Intelligent terminal or computer.
  • Environmentally protected load cell.
  • Rugged construction suitable.


Technical Specifications

Type Max d
WB 30 CK 30 Ton 300 kg
WB 40 CK 40 Ton 500 kg
WB 50 CK 50 Ton 600 kg
WB 60 CK 60 Ton 1 Ton
WB 80 CK 80 Ton 2 Ton
WB 100 CK 100 Ton 2.5 Ton

Optional Accessories
Govt. Stamping
Transport
Weight Track Software
Supervision/ Inst. Co
