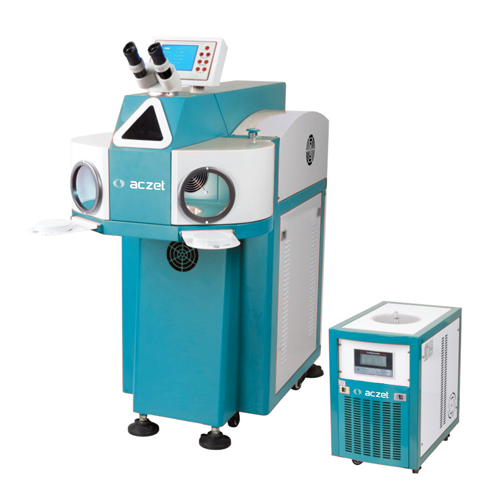

Laser Spot Welding Machine CML-W 150
|
The Principal of Laser welding machine for Industrial is thermal conduction, namely, the laser radiates the surface of the part, and the heat on the surface expands ins ide through heat conduction. By controlling parameters such as laser pulse width, energy, peak value and repeating frequency, the sample will melt, and thus forming specific molten pools. Due to its unique benefit, the product has been successfully applied to precious metals Industrial processing, and welding of small-sized parts and porosity filling.
Personalized design for hassle free operat ion in compl iance wi th ergonomics principles.
|
Sturdy Frame Structure For lowest vibration makes it, ideal for factory use & trouble free operation.
New Touch Screen display for easy operation.
Upto 10 memories cells for storing working parameters permanently. Big Inside chamber for easy movement of big samples.
- Fast, efficient, deep, quality welding.
- Welding points are free from pollution.
- Saves time & energy.
| Application for Jewellery Industry
|
- Joining of different metals.
- Repairing of Precious Items with temperature sensitive area close to Diamonds & Gems stones.
- Assembling of Industrial parts.
- Holes and porosity filling.
- Antique repairing.
- Titanium spectacle frames repairing.
- Possible weld metals : silver, yellow and white gold, PT, Titanium.
| Model |
CML -
W150 |
| LASER WAVELENGTH |
1064nm |
| MAXIMUM AVERAGE POWER |
150w |
| MAX PULSE ENERGY |
100 J |
| DEPTH |
0.1 - 3.3 mm |
| PULSE WIDTH |
0.3 - 20 ms |
| FREQUENCY |
0.5 - 20Hz |
| SPOT SIZE |
0.2 - 2 mm |
| POWER CONSUMTION |
4kw |
| POWER |
220V +0% / 50Hz / 30A |
| INSTALLATION SPACE |
Installation Location : 1
square meters |
| ENVIRONMENT |
Clean, Dust Free, Ideal with
Air Condition |
| TEMPERATURE |
13°C to 22° C |
| NET WEIGHT |
1050 mm x 1230 mm x 570 mm |
|
|
|
