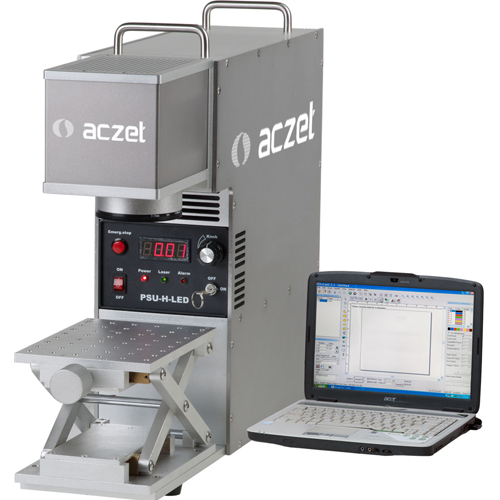

Laser Marker Machine (CFM 2)
|
Based on Ytterbium Fiber Laser Which is highly reliable laser source.
Latest Air Cool Technology makes this machine more convenient to use for small factories & showrooms.
Able to mark all metal and some nonmetal materials.
|
Ergonomically designed & can easily connect with Laptop (Optional), make this machine very compact & can be placed on desktop, taking up a small working space.
Low Power consumption of below 200W makes this machine most energy savings.
Optional Motorised Rotary Marking Device for accurate & continuous 360ยบ marking inside or outside bangles & Rings.
WINDOWS based marking software, able to read CORELDRAW, AUTOCAD, PHOTOSHOP and other commonly used graphic files, such as AI, PLT, DXF, BMP, JPEG.
| Model |
CLEP 2 |
| LASER SOURCE |
Diode End Pump Laser |
| LASER SOURCE LIFETIME ABOUT |
< 10,000 hours |
| MAXIMUM LASER POWER |
2 W |
| WAVELENGTH (NM) (MIN-TYP-MAX) |
1064 nm |
| BEAM QUALITY M2 (TYP-MAX) |
M2 < 1.6 |
| PULSE REPETITION RATE (KHZ) (MIN-MAX) |
20Hz - 100Khz |
| WORKING AREA (MM) |
70 x 70 |
| MARKING SPEED |
<7000 mm/S |
| MIN. WIDTH |
0.01 mm |
| MIN. CHARACTER |
0.08 mm |
| COOLING |
Air Cooling |
| AVERAGE POWER CONSUMPTION |
<200W |
| POWER |
AC220 ± 10% / 50HZ/5A |
| DIMENSION (MM) |
560 x 210 x 460 |
| GROSS WEIGHT |
27 Kgs. |
|
|
|
