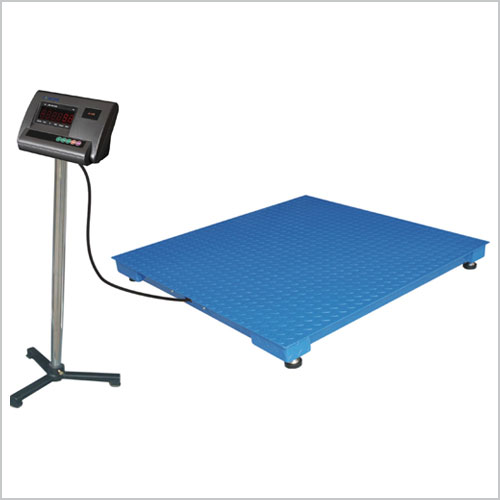

Heavy Duty Platform Scale - MS

Heavy Duty Platform Scale - MS



Standard Features
  • High resolution up to 15,000 Counts.
  • Easy to read (0.56") Bright LED/LCD Display.
  • Net Gross Function.
  • Built-in rechargeable battery for continuous use.
  • Environmentally protected load cell.
  • Back rail support provided.
  • Rugged construction suitable for Industrial Environment.
  • Four Load Cell Construction
  • Checker plate platform.
Heavy Duty Platform Scale - MS


Display
  • 0.56" Bright RED LED/LCD display


Power Supply
  • AC 230V +10% 50-30Hz & with built-in rechargeable battery backup.


Optional
  • RS 232C Interface.
  • 4-20 mA, set Point facility.

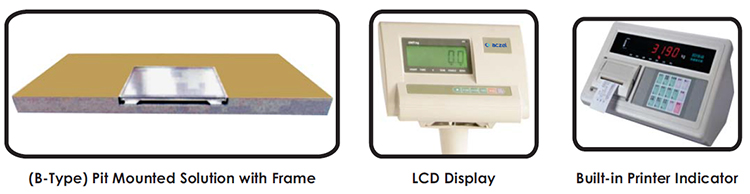

  • (B-Type) Platform for Pit Mounted


Application
  • Engineering industry
  • Ginning Industry
  • Grain Industry
  • Laboratory Industry
  • Chemical Industry
  • Pharma Industry & others
  • Logistic & Warehouse


Technical Specification

Model CTG 1T4L CTG 2T4L CTG 2T4L CTG 3T4L CTG 5T4L CTG 5T4L
CAPACITY 1 Ton 2 Ton 2 Ton 3 Ton 5 Ton 5 Ton
READABILITY 200 gm 500 gm 500 gm 500 gm 1 kg 1 kg
PAN SIZE (MM) 1000 x 1000 / 39.4” x 39.4” 1200 x 1200 / 47.2” x 47.2” 1500 x 1500 / 59.1” x 59.1” 1200 x 1200 / 47.2” x 47.2” 1500 x 1500 / 59.1” x 59.1” 2000 x 2000 / 78.7” x 78.7”
DISPLAY Bright RED LED / LCD Display
POWER SUPPLY AC 230V + 10% 50-60Hz
