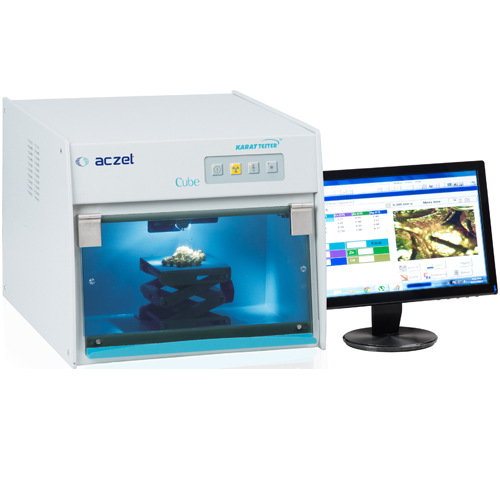

Top to Bottom Gold Testing Machine (CUBE Series)

Top to Bottom Gold Testing Machine (CUBE Series)

Technology

Cube is based on Gas filled prop counter for measuring most common alloys including gold for jewellery industry.

Cube PIN is based on high resolution silicon detector which is ultimate for alloys analyzing for jewellery industry including gold & silver, even one step ahead for accuracy & repeatability compare to Gas filled pro counter.


Principal of X-ray Measurement
Principal of X-ray Measurement


Calibration
  • Pre-calibrated for Gold and other precious metals.


Ease
  • This machine are very user friendly & easy to operate doesn’t require special person to operate, Simply position the piece of interest with the aid of a video microscope and start the measurement. The analysis is performed non-contact and non-destructive wihtin 20 sec. to 60 sec.

    It gives report in formats like PDF / Excel / XML / HTML also gives results in (%) percentage and karat.


Advantages
  • Cube is affordable precious metal analyzer with high precision.




Compact
  • Cube is very Small in size, thanks to smart design which enables this machine fit at any place from smallest showroom to busy business area.


Capability
  • Empirical calibration mode for calibrating unit using well assayed standard samples.
  • Fundamental calibration mode for standard free calibrations.
  • Pre-Calibrations for major yellow and white Gold alloys (optional other precious alloys).
  • Simultaneous quantitative measurement up to 8 elements.
  • Qualitative material identification up to 20 elements.
  • Spectrum analysis for semi - quantitative concentration measurement.
  • Statistical functions with mean value, standard deviation, high/low reading, trend line etc.
  • Plating / Fake gold alert.
  • Can be attached with weighing scale and printer.


Safety
  • A major task of the operating software is to assure the complete safety in the operation of the X-ray system. This includes the control of all the verious safety interlocks and functions needed It Auto cut of X-ray during accidental opening of chember door during testing.

    X-MasteR is the user-friendly operating software for the modern suit of X-ray systems. This program used most modern software tools available for Windows® operating platforms. The main task of the operating software is the control of all system parameters such as high voltage settings, X-ray tube current, display of collimators and filters as well as the collection and manipulation of the measurement data.

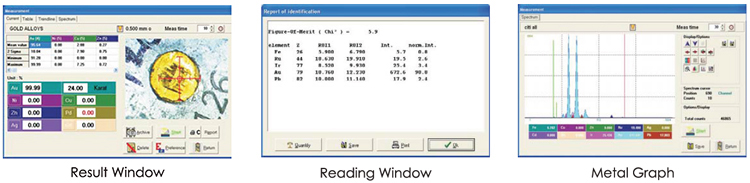

Working of XMasteR
Gold Testing Machine (CUBE Series) - Top to Bottom


Technical Specification

Model CUBE
MEASURING DIRECTION Top to Bottom
APPLIED APPLICATION Gold, Silver, Pt Analysis in jewellery and alloys, Coating Thickness Measurement on Metals
X-RAY TUBE Mini-focus,high performance, W-target
HIGH VOLTAGE 50kV (1.2mA)
DETECTOR High resolution Gas Filled Proptional Counter
DETECTOR RANGE Au, Ag, Cu, Zn, Ni, Pd, Cd, Rh, Ru, Pt & More
MEASUREMENT TIME 20 - 60 sec.
MEASUREMENT RANGE 0-100%
COLLIMATOR 0.5, 1.0, 2.0mm
SAMPLE STAGE Scissors type z-stage
POWER SUPPLY 230VAC, 50/60Hz, 120W
DATA CONNECTIVITY USB Port
EXTERNAL CONNECTIVITY Weighing Scale / Printer (via computer)
FOCUSING Mannual / Auto (Optional)
WORKING TEMP. AND HUMIDITY 15-25°C and 10-80% RH
INSIDE CHAMBER 330 x 200 x 170 mm (WxDxH)
OVERALL DIMENSION 350 x 450 x 310 mm (WxDxH)
WEIGHT 27 kg
OPTIONAL Auto Z stage, Joy-Stick real operational movement, point & shoot
