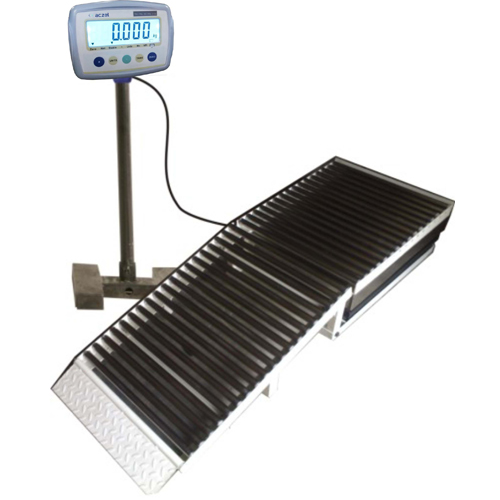

Roller Ramp Scale

Roller Ramp Scale

Standard Features

High resolution up to 15,000 Counts.
Easy to read (0.56") Bright LED/LCD Display.
Net Gross Function.
Built-in rechargeable battery for continuous use.
Environmentally protected load cell.
Platform available with roller ramp version for special industrial application

Heavy Duty Platform Scale - MS

Power Supply

AC 230V +10% 50-30Hz & with built-in rechargeable battery backup.

Optional

RS 232C serial interface port facility.
Remote display available for customer.
4-20 mA, set Point facility.
A-Type Platform Roller & Ramp.
B-Type Platform Pit Mounted.

Application

Engineering industry
Ginning Industry
Grain Industry
Laboratory Industry
Chemical Industry
Pharma Industry & others

Technical Specification

Model	CTG 60RR	CTG 100RR	CTG 150RR	CTG 200RR	CTG 300RR	CTG 500RR
CAPACITY	60 kg	100 kg	150 kg	200 kg	300 kg	500 kg
READABILITY	5 / 10 gm	10 gm	10 gm	20 gm	20 / 50 gm	100 gm
PAN SIZE (MM)	500 x 500 / 19.5” x 19.5”	600 x 600 / 23.4” x 23.4”				750 x 750 / 29” x 29”

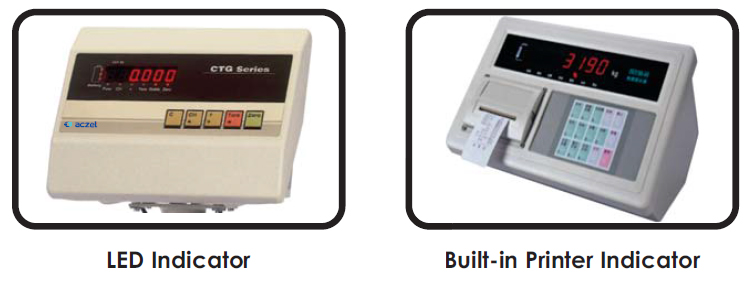

DISPLAY	Bright LED / LCD Display
POWER SUPPLY	AC 230V + 10% 50-60Hz
