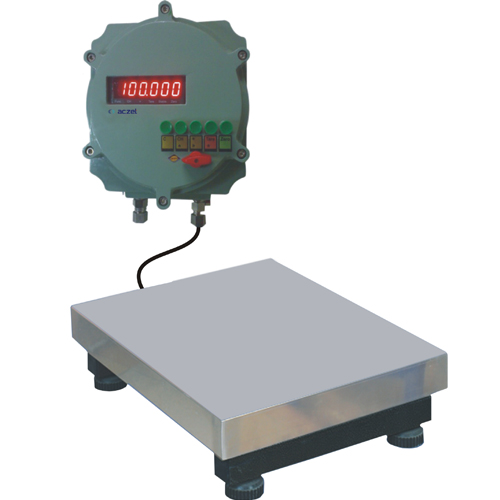

Flame Proof Platform Scale

Flame Proof Platform Scale

Scales CTG-FP Series are designed for operation in EX zones 1 and 2 of mixtures of exlosive vapours, gasses and fogs with air which also constitute for exlosive group IIB and temperature classes T1, T2, T3 and T4.


Standard Features
  • High resolution up to 15,000 counts.
  • Easy to read (0.56") Bright LED display.
  • Environmentally protected load cell.
  • Rugged construction suitable for industrial environment.
  • All models are certified by CIMFR (Dhanbad) for use in Hazardous areas.


Group
  • IIA & IIB Atmosphere &zone I & II use with intrinsically safe zener barriers.


Indicator
  • IND 560XX with zone 2 approved with IP 69k protection.


Display
  • 0.56" Bright RED LED display.


Power Supply
  • AC 230V + 10% 50-60Hz


Optional
  • 4-20 mA, set point facility
  • Relay output facility


Technical Specification

Model CTG 30F CTG 60F CTG 150F CTG 200F CTG 300F CTG 500F
CAPACITY 30 kg 60 kg 150 kg 200 kg 300 kg 500 kg
READABILITY 0.5 gm 10 gm 10 gm 20 gm 20 gm 50 gm
PAN SIZE (MM) 400 x 400 / 15.7" x 15.7" 500 x 500 / 19.5" x 19.5" 600 x 600 / 23.4" x 23.4"
DISPLAY Bright RED LED Display
POWER SUPPLY AC 230V + 10% 50-60Hz
