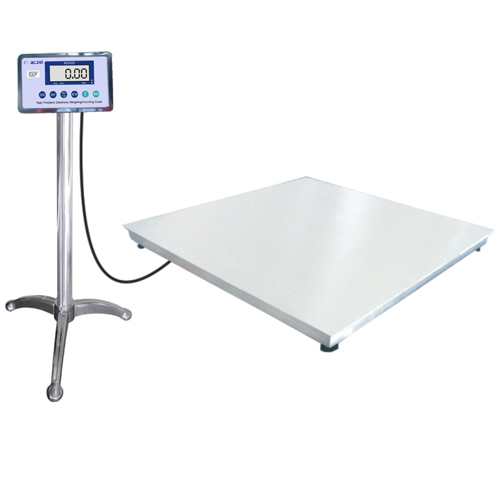

Heavy Duty Platform Scale - SS

Heavy Duty Platform Scale - SS



Standard Features
  • High resolution up to 15,000 counts.
  • Rugged construction suitable for industrial environment.
  • GMP, FDA Compliance.
  • Auto-off Function for power saving.
  • Dust resistance Membranes key.
  • Four Load Cells platform.
  • Stainless Steel 304 U-Sape Structure.
  • For some special industries like pharma, medical, science, food & chemical Industries.
Heavy Duty Platform Scale - MS


Display
  • 0.56” Bright RED LED / LCD display.
  • 304L or 316L Platter provided.
  • Stainless Steel capsulated load cell for complete washdown applications.
  • Safety overload 150% of the scale capacity.
  • Pit-Mount platform scales (B-Type)


Power Supply
  • AC 230V + 10% 50-60Hz & with built-in rechargeable battery backup.

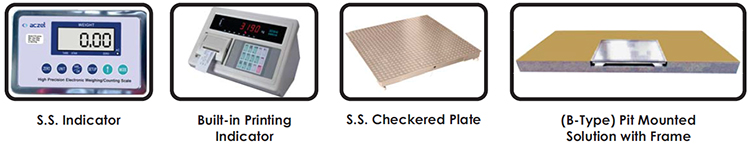

Optional
  • RS 232C Serial Interface.
  • Remote display.
  • (B-Type) Platform for Pit Mounted.
  • SS IP 68 Indicator.
  • Built-in Printing Indicator.


Technical Specification

Model CTG 1T4S CTG 2T4S CTG 2T4S CTG 3T4S CTG 5T4S CTG 5T4S
CAPACITY 1 Ton 2 Ton 2 Ton 3 Ton 5 Ton 5 Ton
READABILITY 200 gm 500 gm 500 gm 500 gm 1 kg 1 kg
PAN SIZE (MM) 1000 x 1000 / 39.4” x 39.4” 1200 x 1200 / 47.2” x 47.2” 1500 x 1500 / 59.1” x 59.1” 1200 x 1200 / 47.2” x 47.2” 1500 x 1500 / 59.1” x 59.1” 2000 x 2000 / 78.7” x 78.7”
DISPLAY Bright RED LED / LCD Display
POWER SUPPLY AC 230V + 10% 50-60Hz
