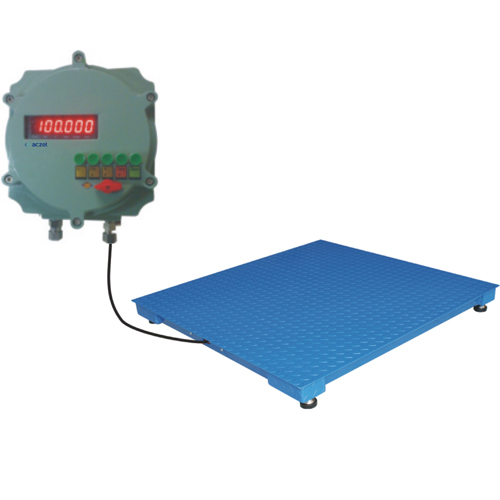

Flame Proof Heavy Duty Platform Scale

Flame Proof Heavy Duty Platform Scale

Standard Features

High resolution up to 15,000 counts.
Environmentally protected load cell IP 67 Class.
Rugged construction suitable for industrial environment.
AII models are certified by CIMFR (Dhanbad) for use in Hazardous areas.
Ultra-Low, Chequred plate.

Group

IIA & IIB Atmosphere & zone I & II use with intrinsically safe zener barriers.
UltraLow Profile also available on request models CTGxxULP Series.

Display

0.56" Bright RED LED display.

Power Supply

AC 230V + 10% 50-60Hz

Optional

4-20 mA, set point facility
Relay output facility

Technical Specification

Model	CTG 1T4 FP	CTG 1T4 FP	CTG 2T4 FP	CTG 3T4 FP	CTG 5T4 FP	CTG 5T4 FP
CAPACITY	1 Ton	1 Ton	2 Ton	3 Ton	5 Ton	5 Ton
READABILITY	200 gm	200 gm	500 gm	500 gm	1 kg	1 kg
PAN SIZE (MM)	1000 x 1000 / 3.3’ x 3.3’	1200 x 1200 / 3.9’ x 3.9’		1500 x 1500 / 4.9’ x 4.9’		2000 x 2000 / 6.6” x 6.6”
DISPLAY	Bright RED LED Display
POWER SUPPLY	AC 230V + 10% 50-60Hz
