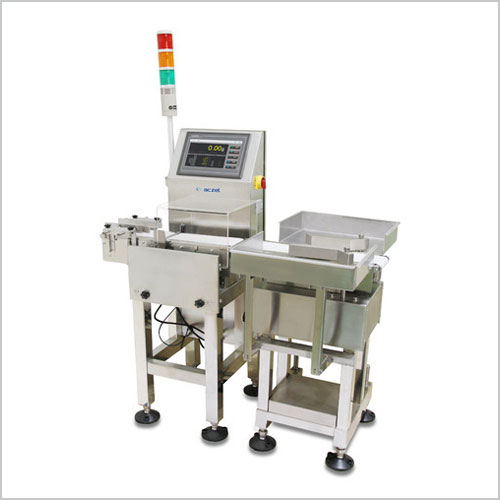

Dynamic Check weighers CW-M

Dynamic Check Weigher

Dynamic Checkweighers CW-M solutions offered feature program control based adjustable conveying speed that makes these designed for bringing superior control of packaged & unpackaged goods in industry sectors including Food, Pharmaceutical, Dairy, Chemical and Brewing. Also coming with endless product data and report storage capacity, some of the other industry sectors these are preferred in include Telecommunication, Personal Care, , Packaging and other industry applications. For delivering precision functionality, these dynamic checkweighers are manufactured using superior grade of stainless steel with operating support of Industrial PC Technology with Windows based Embedded System that allows easy and optimum handling of the system. Some of the other standard features of the system include RS 232, RS 485, USB, ethernet interface, option of remote monitoring of live operations, options of creating bar graphs, pie diagrams and statistical data as well as allowing complete documentation of weighing operations. The different model options available include CW 10M, CW 15M, CW 30M, CW 150M and CW 600M with max capacity of 10kg, 15kg, 30kg, 150kg and 600kg.
  • Programmed Controlled Infinitely Adjustable Conveying Speed
  • Unlimited Product Data And Report Storage Capacity.

Standard Features
  • Designed For Control Of Packaged & Unpackaged Goods
  • Ideal For Food, Pharmaceutical, Dairy, Chemical, Brewing,
  • Tobacco, Packaging, Machine, Telecommunication, Personal Care,
  • Forwarding, Electronic, Garment, Metallurgical Industries, Etc.
  • Manufactured In Stainless Steel Technology
  • Based On Industrial PC Technology With Windows Embedded System
  • Big Dimension, Advanced, Interactive Colour Touch Screen With Very User Friendly Operation
  • RS 232, RS 485, USB, Ethernet Interface
  • Remote Monitoring Of Live Operation
  • Bar Graphs, Pie Diagrams And Statistical Data
  • Full Documentation Of Weighing
  • Database In MS Access & SQL Server
  • Automatic Zeroing
  • Multi-stage Password Protection
  • Administrator And User Differentiation
  • Rapid Change Of Belts
  • Feedback Signaling For Batchers / Dosing Systems
  • Control Through The Single Software For Metal Detectors,
  • Dosing Systems, Signaling Devices, Conveyor Belts, Label /
  • Inkjet Printers, Barcode Readers, Backup Devices, Etc...

Technical Specifications

Model CW 10M CW 15M CW 30M CW 150M CW 600M
Max Capacity 10kg 15kg 30kg 150kg 600kg
Accuracy (g)* +-5g +-5g +-10g +-50g +-200g
Reject Systems Pusher / Divert Arm / Belt Stop
IP Rating IP 67 / 68
Power Supply 230V AC, 50Hz
Working Temperature 10 +- 40C
Display LED and LCD / Interactive, Colour Touch Screen
