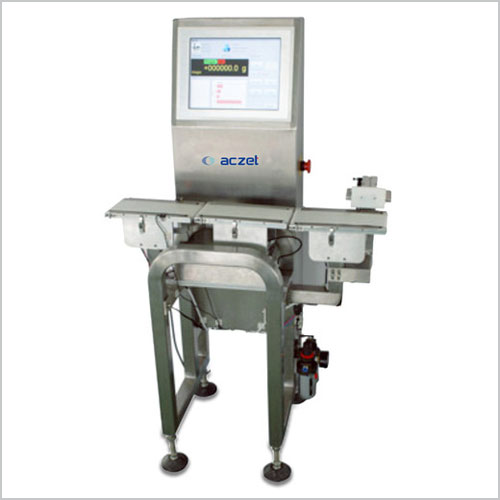

High Speed Checkweigher

High Speed Checkweigher find application in controlling of both packed as well as unpacked goods. We make these available in superior stainless steel construction with latest industrial PC technology and windows embedded system support. Among many of its features, these come with single software based control for meeting the handling and controlling needs of signaling devices, conveyor belts, label/inkjet printers, metal detectors, dosing systems, backup devices, barcode readers.

Designed For Control Of Packaged & Unpacked Goods.
Ideal For Food, Pharmaceutical, Dairy, Chemical, Brewing,etc.

Standard Features

Tobacco, Packaging, Machine, Telecommunication, Personal Care,
Forwarding, Electronic, Garment, Metallurgical Industries, Etc.
Manufactured In Stainless Steel Technology
Based On Industrial PC Technology With
Windows Embedded System
Big Dimension, Advanced, Interactive Colour Touch Screen
With Very User Friendly Operation
RS 232, RS 485, USB, Ethernet Interface
Remote Monitoring Of Live Operation
Programme Controlled Infinitely Adjustable Conveying Speed
Unlimited Product Data And Report Storage Capacity
Bar Graphs, Pie Diagrams And Statistical Data
Full Documentation Of Weighing
Database In MS Access & SQL Server
Automatic Zeroing
Multi-stage Password Protection
Administrator And User Differentiation
Rapid Change Of Belts
Feedback Signaling For Batchers / Dosing Systems
Control Through The Single Software For Metal Detectors,
Dosing Systems, Signaling Devices, Conveyor Belts, Label /
Inkjet Printers, Barcode Readers, Backup Devices, Etc.

Technical Specifications

Model	CW 300H	CW 600H	CW 1500H
Max Capacity	300kg	600kg	1500kg-6000kg
Accuracy (g)*	+-100g	+-200g	+-500g - +-2000g
IP Rating		IP 66 / 67
Power Supply		230V AC, 50Hz
Working Temperature		10 +- 40C
Display		LED and LCD / Interactive, Color Touch Screen
