Based on 32 Bit High Speed CPU / Industrial PC Technology with Windows Embedded System (Optional)
Graphical with Touch Screen Display
Built-in Power Stabilizer
Buzzer & Lamp Alarming with Rejectors
100 Products Preset; Easy to Edit & Recall
Data Storage & Data Printout ready
2000 Sorting Reports
RS-232 (Standard), USB & Ethernet Interface (Optional)
Easy ± Tolerance Control
Easy Interface in Existing Production Lines
Adjustable Bolt Speed
Belt Speed : Upto 120 m/min. (180Hz)
Rapid Change of Belts
Anti-Vibration Legs with Height Adjustment
Bar Graphs,, Pie Diagrams & Statistical Data (Optional)
Database in MS Access & SQL Server (Optional)
Remote Monitoring of Live Operation (Optional)
Feedback Signaling for / Dosing Systems (Optional)
Control thru the Single Software for Metal Detectors, Dosing Systems, Signaling Devices, Conveyor Belts, Label / Inkjet Printers, Barcode Readers, Backup Devices, etc..... (Optional)

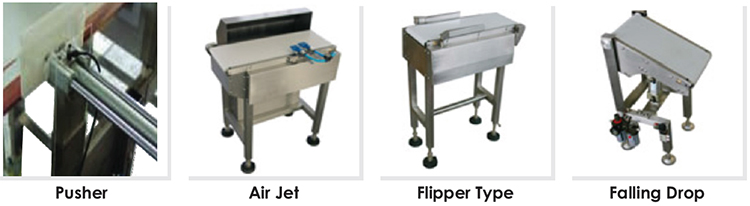

Rejector
Technical Specification
Model
CW 220
CAPACITY
5 ~ 200g
ACCURACY (G)*
± 0.2g
REJECT SYSTEMS
Air Jet Reject / Flapper / Falling Drop /
Roller with Pusher
