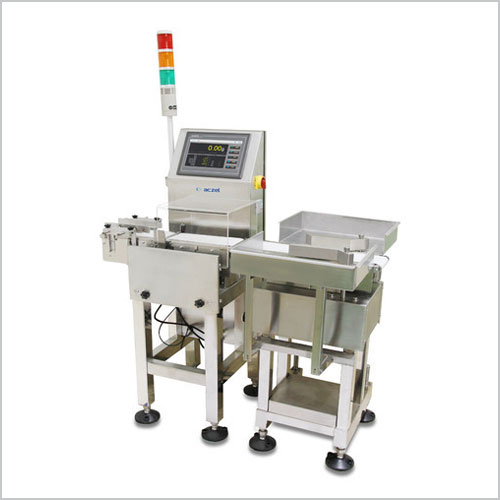

Dynamic Check weighers CW-1K




Features
  • Designed for Control of packaged & Unpackaged Goods.
  • Detecting Theory : Digital Weighing Sensor, EMFC Sensor (Optional)
  • HACCP, CMP & FDA Approved
  • Automatic Weighing Compensation & Zero Tracking
  • Strong Stainless Steel Structure (S.S. 301) Mild Steel (Optional)
  • Advance DSP Technology with Digital Signal Filter
  • Based on 32 Bit High Speed CPU / Industrial PC Technology with Windows Embedded System (Optional)
  • Graphical with Touch Screen Display
  • Built-in Power Stabilizer
  • Buzzer & Lamp Alarming with Rejectors
  • 100 Products Preset; Easy to Edit & Recall
  • Data Storage & Data Printout ready
  • 2000 Sorting Reports
  • RS-232 (Standard), USB & Ethernet Interface (Optional)
  • Easy ± Tolerance Control
  • Easy Interface in Existing Production Lines
  • Adjustable Bolt Speed
  • Belt Speed : Upto 120 m/min. (180Hz)
  • Rapid Change of Belts
  • Anti-Vibration Legs with Height Adjustment
  • Bar Graphs,, Pie Diagrams & Statistical Data (Optional)
  • Database in MS Access & SQL Server (Optional)
  • Remote Monitoring of Live Operation (Optional)
  • Feedback Signaling for / Dosing Systems (Optional)
  • Control thru the Single Software for Metal Detectors, Dosing Systems, Signaling Devices, Conveyor Belts, Label / Inkjet Printers, Barcode Readers, Backup Devices, etc..... (Optional)

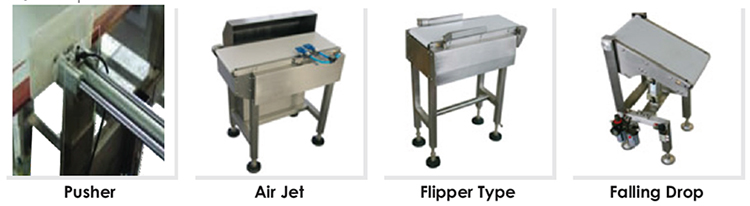

Rejector
Rejector


Technical Specification

Model CW 1K
CAPACITY 2 ~ 1000g
ACCURACY (G)* ± 0.5g
REJECT SYSTEMS Air Jet Reject / Flapper / Falling Drop
IP RATING IP 65
POWER SUPPLY AC 110V / 220V, 50 ~ 60Hz
WORKING TEMPERATURE 10º ± 40ºC
DISPLAY Graphical with touch Screen
