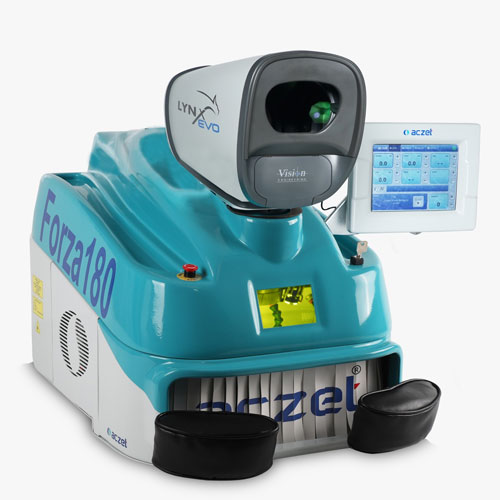

Desktop Laser Spot Welding FoRza Machine

Technology

The new digital microprocessor incorporated in the FoRza works 100 times faster than traditional systems. and is able to measure the high energy precisely, analysing it and sampling it every 100 micro seconds.

This makes welder FoRza a powerful machine while at the same time constant and very precise in the repetition of the shots.

Desktop Laser Spot Welding FoRza

Features

Real time and automatic regulations of the power supply.
Double light LCD Touch Screen Shutter.
Automatic control of the laser lamp, with consequent automatic adjustment of the energy.
Integrated webcam
Better cooling chamber & Efficient air cooling system.
6 preset pulse shaping programs

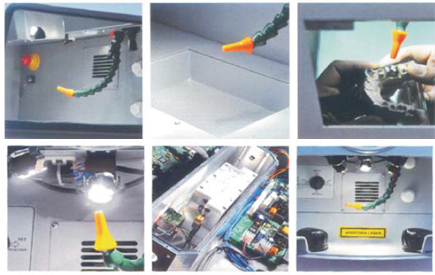

Argon Gas nozzle directly on the welding point
Air nozzle for cooling pieces in the working chamber
Extractable drawer for the chamber cleaning
Low noise and low maintenance 100memories parameters
Frontal and big doors

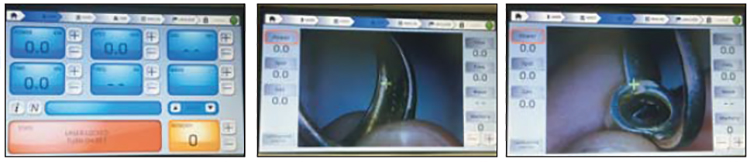

Optional on board LIVE Video Camera

LASER APPLICATION

Easily weld precious metals and other, including platinum, titanium, gold, silver and palladium.
Repairs old jewellery perfectly.
Repairs molding without removing the stones.
Welds the elements using weld materials, and leaves them clear, sharp and without the need to clean again.
Repairs casting defects such as porosity or breakages. by simply welding those areas with solder wire.
Suitable for high-productive cycles

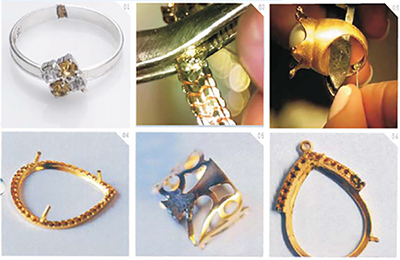

Welding Samples

Welding broken ring
Welding on Jewellery joints
Working directly on the models
Welding of pins
Repairs scratch and casting defect
Reconstruction of stones setting

Technical Specification

Model	FoRza-100	FoRza-160
MAXIMUM LASER POWER	100J @ 20mS	160J @ 15mS
PEAK PULSE-POWER	5 kw	8 Kw
AVG. PULSE-POWER	65 W	85 W
FREQUENCY OF REPETITION	0.5 to 30Hz
SPOT SIZE	0.2 to 2.0 mm
MICROSCOPE	10 x 45 binoculars by leica
PROGRAM	6, preset
PROGRAM MEMORY	cells 99
WEIGHT	40 kg
DIMENSION (W X D X H)	750 mm x 540 mm x 530mm
