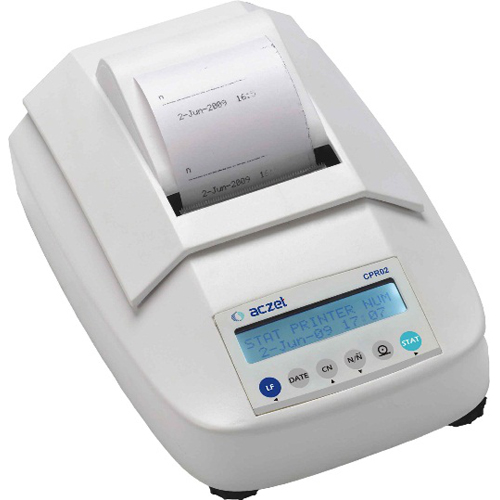

Statical Data Printer

ACZET STATISTICAL PRINTER is Idle for routine laboratory application with following features.

GLP / GMP

ISO/GLP compliant recording capability for printouts.

GLP

Good Laboratory Practice Password - protected menu lock.

We have the parameter pertaining to the ambient weighing conditions printed before (GLP header) and after (GLP footer) the values of a weighing series. These parameters include.

GLP Header

Date
Time at beginning measurement
Balance manufacturer
Balance model
Balance serial number
Software version number
Identification number of the current sampling operation

GLP Footer.

Date
Time at end of measurement
Field for operator signature
ID designations are configured as follows setup : Printout : Identification codes.
ISO/GLP compliant recording capability for printouts.

Technical Specification

MODEL	CPR 02
FEATURES	Date, Time, Statistic and Totalization functions
PRINTERS	Dot Matrix Printer
NO OF CHARACTERS PER LINE	24 Character
PRINTING SPEED	Faster Than 1 line per second
PAPER TYPE	Normal Paper Roll, Wood Free Paper
PAPER SIZE	Width : 57.5 ±0.5mm. Core Diameter : 8mm Min.
POWER SUPPLY	AC Adopter, 100-270V AC, 50Hz - 60Hz
INTERFACE	RS 232C
BOUND FATE	1200, 2400, 4800, 9600, 19200
PARITY	None, Space, Odd. Even
DATA BIT	8 Bit
STOP BIT	1
WORKING TEMPERATURE	5ºC to 50ºC, relative humidity : 10% - 80% (no condensation)
DIMENSIONS (MM/INCH) (LXWXH)	210 x 135 x 88.5 / 8.30” x 5.30” x 3.50
NET WEIGHT / GROSS WEIGHT	2.00 kgs / 2.2 kgs
PACKING SIZE (MM/INCH)	270 x 200 x 175 / 10.62” x 7.8” x 6.90”
