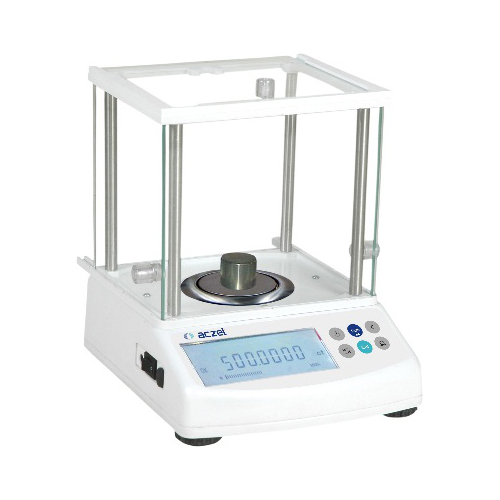

Basic Carat & Jewellery Balance
|
All Aczet High Performance Jewellery Balances are based on Electro magnetic force compensation principal. The compensated principal is superior to conventional systems due to improved dynamic & static performance.
Unique & unequalled high end MONOTECH technology (Weigh Sensor) to match the highest international standards.
High Contrast Backlit LCD display is exceptionally easy to read under any room lighting conditions.
|
Capacity Bar graph show how much of the weighing range is still available.
Can be connect with any Diamond & Jewellery Balances of Aczet. Date, Time Statistic & Totalization function which enables for printing any Diamond & Jewellery Weights printouts.
It’s provides easily readable records on normal paper which last for years.
User can weigh various weighing units like mg, g, ct, oz, dwt, tola, mommes, baht, grain, mesghal, ozt, Hong Kong Taels, Singapore Taels, Taiwan Taels. This extends flexibility to the user.
Standard Under weighing hook for below balance weighing.
Only a single cable is required to transfer balance data to MS Excel or other Windows application through RS232C interface. No troublesome interface attachment or software installation is necessary. This unique feature makes Aczet balance extremely convenient for data analysis.
This Balances are equip with Larger Drafshield & Windshield chamber with giving more operational space. Diamonds can be easily place with Standard Carat Bowl with handle from the both sides
Aczet Data Printer is available for printing Weighing Data with Time & Date Formulation.
| MODEL |
CY 54 |
CY 203K |
CY 503K |
CY153 |
CY303 |
CY510 |
CY 802 |
CY 1502 |
CY 2502 |
| CAPACITY |
50 g |
200ct |
500ct |
750 ct |
1500ct |
2550 ct |
800 g |
1500 g |
2500 g |
| READABILITY |
0.1 mg |
0.001 ct |
0.001 ct |
0.005 ct |
0.005 ct |
0.005 ct |
0.01 g |
0.01 g |
0.01 g |
| REPEATABILITY |
0.1 mg |
0.001 ct |
0.001 ct |
0.005 ct |
0.005 ct |
0.005 ct |
0.01 g |
0.01 g |
0.01 g |
| LINEARITY (+) |
0.1 mg |
0.002 ct |
0.005 ct |
0.01 ct |
0.01 ct |
0.01 ct |
0.05 g |
0.05 g |
0.05 g |
| PAN SIZE (MM) |
60 Ø |
|
90 Ø |
115 Ø |
| RESPONSE TIME |
2 - 3 sec |
| CALIBRATION |
External |
|
|
|
