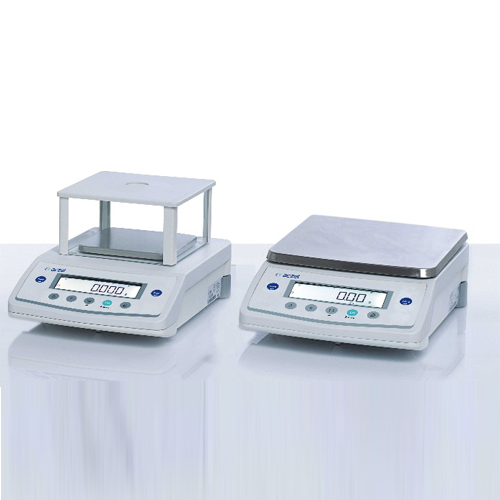

Precision Balance

Precision Balance - CT-H



Application
  • Weighing
  • Net / Total
  • Check Weighing
  • Weight accumulation
  • Piece counting
  • Animal Weighing
  • Dynamic Weighing
  • Density determination
  • Below balance weighing

  • IP Protection : IP 54
  • Spacious draft shield interior
  • Two tare keys (Left & Right)
Sprit leveling
Balances have adjustable feet fro maintaining / providing uniform level.


The Briliant Mono-Tech
Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards.


Easy Data Transfer
Interface RS 232C Optional USB (Windows direct communication).


Electromagnetic Compatibility
Metal housing eliminates the effects of thunderstorms or electromagnetic inter-ference from other equipments.


Power Saving Mode
Auto zero tracking


Overload Protection
Capacity tracker built into display for easily monitoring possible overloads.


Excellent Readability
High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions.


GLP
Built-in clock make all your documents ISO / GLP / GMP compliance.


Anti-theft device
Balance are equipped with a lug for optional anti-theft device. The anti-theft device (cable with lock) is suitable for all models.


Statistics
This smart feature enables the user to obtain the statistics of the data stored in the scale including details such as number of readings, minimum value, maximum value, standard deviation, difference and Coefficient of variance.


Technical Specification

MODEL CY 123 CY 223 CY 323 CY 423 CY 513 CY 723 CY 1003 CY 2003 CY 3003
CAPACITY 120 gm 220 gm 320 gm 420 gm 510 gm 720 gm 1000 gm 2000 gm 3000 gm
READABILITY 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm
REPEATABILITY (SD) 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.001 gm 0.002 gm 0.003 gm 0.003 gm
LINEARITY(+/-) 0.002 gm 0.002 gm 0.002 gm 0.002 gm 0.002 gm 0.002 gm 0.005 gm 0.005 gm 0.005 gm
TARE RANGE (SUBTRACTIVE) -120 gm -220 gm -320 gm -420 gm -510 gm -720 gm -1000 gm -2000 gm -3000 gm
MINIUM LOAD 20 mg
MINIMUM SAMPLE WT. AS PER USP 1gm to 2gm
MINIMUM WT. AS PER (U=1%, SD=2) 0.1 gm to 0.2 gm
PAN SIZE (MM / INCH) 128 x 128 / 5” x 5”
RESPONSE TIME 2 - 3 Sec.
DISPLAY Alpha Numeric LCD Backlite Display with A.E.P.
CALIBRATION Automatic External Calibration
UNITS OF MEASURE gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
OPERATING TEMP. 15º to 30ºC
SENSITIVITY DRIFT. ± 2ppm (2 x 10 / ºC)
APPLICATION MODES PCS, % Weighing, Animal / Dynamic Weighing Check Weighing,
Automatic Density, Determination, Formulation Automatic Statistic Calculator etc.
POWER SUPPLY A/C Adaptor 230V or 115V / +/-20% 50-60Hz
COMPLIANCE ISO, GLP / GMP USP Compliance
HOUSING DIM. / CHAMBER HEIGHT (MM) 342.5 (W) x 212 (D) x 193.5(H) / 81 (H)
WEIGHT APPROX 7.5 kg
