Micro Balances
|
Micro Balances - CM SERIES
Our Micro Balances has been designed to meet high requirement for measuring small masses with high readability (d = 1 mg). They are equipped with graphic display/with user menu.
In order to guarantee proper accuracy of measurement, a half automatic system of external calibration with E 1 standard weight has been applied.

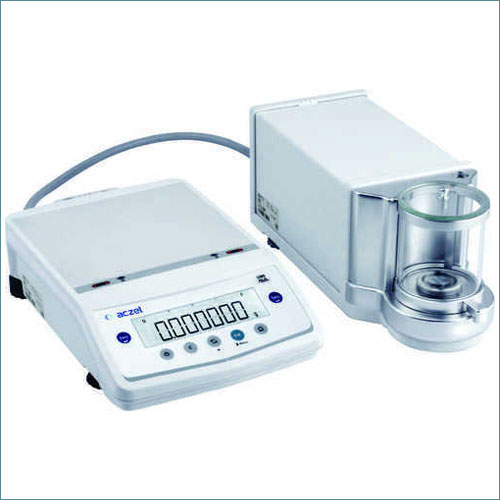

Micro balance consist of two balance components. One of them contains electronic modules & other precise mechanical measuring system. Such solution guarantees elimination of temperature changes influencing the indication micro balance.
Micro balances series CM ore offered with 4 capacity 2gm, 5gm, 11gm & 22gm (with readability 1 mg) balances are equipped with esthetic, cylindrical shaped weighing chamber with glass draft shield. All elements of weighing chamber ore manufacture from glass or metal which minimize the influence of electro-static charges on weighing result. Micro Balance equipped with user friendly menu User has access to multiple functions & measuring units which allow for specification for working requirements. Micro Balances software allows for composition of GLP procedures as standard printout freely definable non-standard printout series.
Balances CM is equipped with RS 232, PS 2 o/p & possibility of connecting additional display as standard. |
- Specialized Large Backlite Alpha numeric LCD Display with A.E.P. (Advance Eye Protection) New.
- Standard RS 232 interface / USB.
- Inbuilt system of internal calibration with initial calibration
- Auto calibration according to change in ambient temperature.
- User selected time calibration
- Various application other than just simple.
- Weighing like
- % Weighig
- Filling
- Check Weighing
- Statistic
- Complies to GLP / GMP
- Automatic Zero Tracking features (can be turned OFF by menu code).
 |
| MODEL |
CM 2 |
CM 5 |
CM 6 |
CM 11 |
CM 21 |
CM 31 |
| Maximum capacity [Max] |
2 g |
5 g |
6 g |
11 g |
22 g |
31 g |
| Minimum load |
100 µg |
100 µg |
100 µg |
100 µg |
100 µg |
100 µg |
| Readability [d] |
1 µg |
1 µg |
1 µg |
1 µg |
1 µg |
1 µg |
| Repeatability (Max) |
1 µg |
1.6 µg |
1.6 µg |
2.5 µg |
3 µg |
+2 µg |
| Repeatability (5% Max) |
0.5 µg |
1 µg |
1 µg |
1.2 µg |
1.2 µg |
+2 µg |
| Verification scale interval [e] |
1 mg |
1 mg |
1 mg |
1 mg |
1 mg |
1 mg |
| Tare range |
-2 g |
-5 g |
-6 g |
-11 g |
-22 g |
-31 g |
| Linearity |
+3 µg |
+4 µg |
+4 µg |
+6 µg |
+7 µg |
+10 µg |
| Eccentric load deviation |
3 µg |
5 µg |
5 µg |
6 µg |
7 µg |
8 µg |
| Sensitivity offset |
1.5x10-6xRt |
1.5x10-6xRt |
1.5x10-6xRt |
3x10-6xRt |
4x10-6xRt |
4x10-6xRt |
| Sensitivity temperature drift |
1x10-6/°CxRt |
1x10-6/°CxRt |
1x10-6/°CxRt |
1x10-6/°CxRt |
1x10-6/°CxRt |
1x10-6/°CxRt |
| Sensitivity time drift |
1x10-6/YearxRt |
1x10-6/YearxRt |
1x10-6/YearxRt |
1x10-6/YearxRt |
1x10-6/YearxRt |
1x10-6/YearxRt |
| Minimum weight (USP) |
1 mg |
2 mg |
2 mg |
2.4 mg |
2.4 mg |
4 mg |
| Minimum weight (U=1%,k=2) |
0.1 mg |
0.2 mg |
0.2 mg |
0.24 mg |
0.24 mg |
0.4 mg |
| Weighing chamber dimensions |
Ø70 x 85.8mm |
Ø70 x 85.8mm |
Ø70 x 85.8mm |
Ø70 x 85.8mm |
Ø70 x 85.8mm |
Ø70 x 85.8mm |
| Stabilization time |
Max 6 - 8 s |
Max 6 - 8 s |
Max 6 - 8 s |
Max 6 - 8 s |
Max 6 - 8 s |
Max 6 - 8 s |
| Weighing pan dimensions |
15 Ø /30 mm Ø |
15 Ø /30 mm Ø |
15 Ø /30 mm Ø |
15 Ø /30 mm Ø |
15 Ø /30 mm Ø |
15 Ø /30 mm Ø |
| Display |
Alpha Numeric Backlite LCD Display |
| Calibration |
Motorised Internal Calibration |
| Units of measure |
gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS |
| Operating Temp. |
18° to 30°C |
| Sensitivity Drift. |
+1ppm (1 x 10-6 / °C) |
| Interface |
RS 232C Optional USB (Windows direct communication). |
| Application Modes |
PCS, % Weighing, Animal / Dynamic Weighing, Check Weighing, etc. |
| Power Supply |
A/C Adaptor 230V or 115V / +/-20% 50-60Hz |
| Compliance |
ISO, GLP / GMP Compliance |
| Balance Size mm |
Mechanical Box : 360 (L) x 140 (W) x 146 (H)
Electronic Box : 240 (W) x 210 (D) x 65 (H) |
| Weight Approx |
10.20 / 14.70 kg |
| Packaging Dimensions |
47cm x 37 cm x 49cm |
|
|
|
